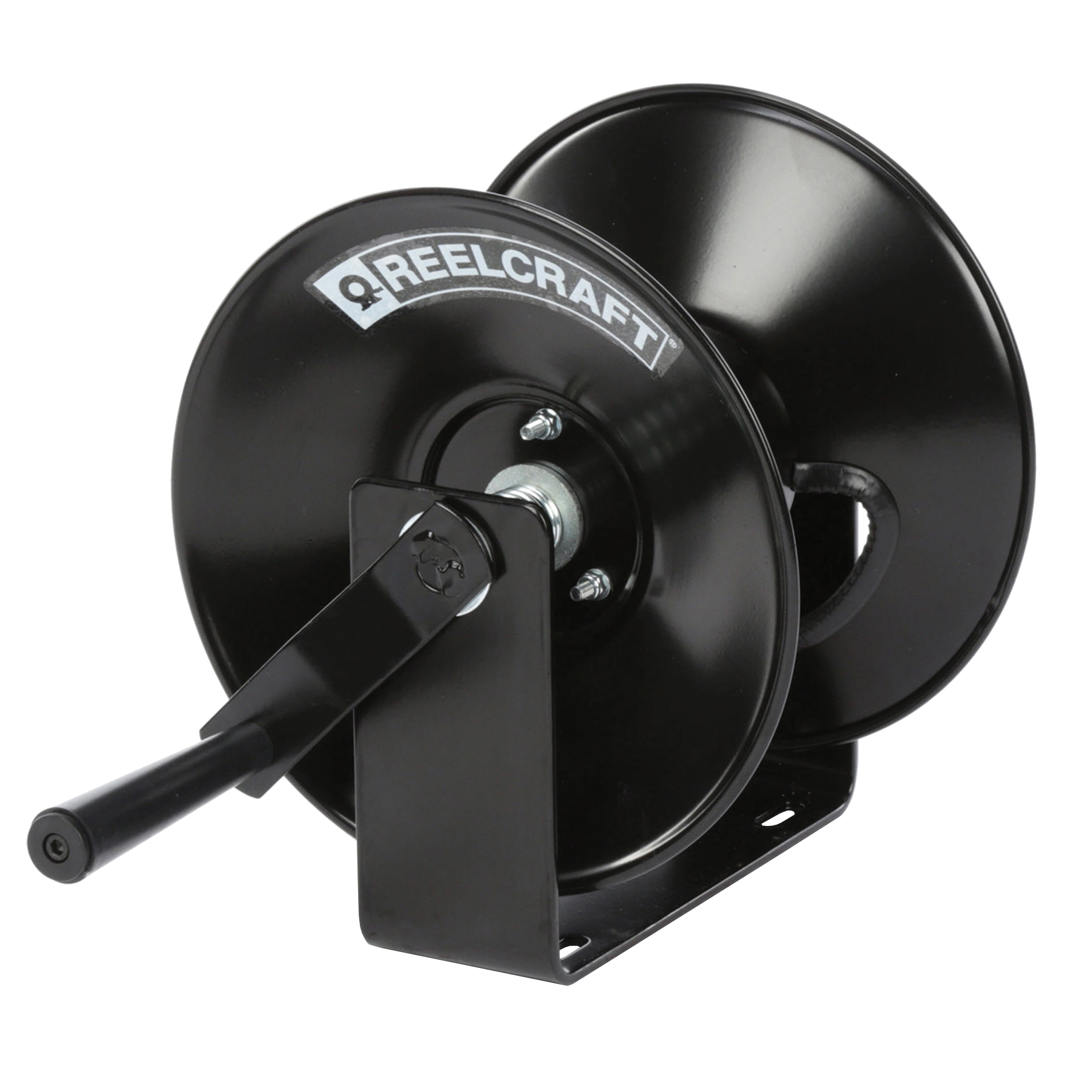

Reelcraft CU8100LN Light Duty Hand Crank Air and Water Hose Reel
1/2 in. NPT Inlet(F)Outlet(F), without Hose, 100 ft. Hose Capacity, 300 psi, 1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| CU8100LN | 1/2 in. NPT Inlet(F)Outlet(F), without Hose, 100 ft. Hose Capacity, 300 psi, 1/2 in. Hose I.D. | $251.58 |
Contact UsReelcraft - CU8100LN - Light Duty Hand Crank Air and Water Hose Reel
Reelcraft's Series C hose reels are designed for lighter-duty applications that require longer lengths of low pressure air hose. Hand crank with a balanced brass swivel and brass inlet, the Series C is the product of lighter weight components and forward-thinking design. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature a drag break to prevent de-spooling when reel is not in use. The Series C is an economical choice for storing and retrieving hose. Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion. Low cost - The simple and effective design allows the economical storage and retrieval of hose. Easy to operate - The rotating handle allows the hose to be retrieved with ease. Tubular design - The inlet is fed through the center of the tube frame, protecting the inlet hose and creating a cleaner look over all.Specifications
- Inlet: 1/2" NPT(F)
- Outlet: 1/2" NPT(F)
- PSI: 300 psi
- Max Temperature: 150 °F
- Hose I.D.: 1/2"
- Hose O.D.: 0.75"
- Hose Length: 100'
- Hose Included: No
Dimensions
| A | 14.375" |
| B | 20.875" |
| C | 13.25" |
| D | 6" |
| E | 10.25" |
| F | 13.25" |
| G | 2.375" |
| H | 4" |
