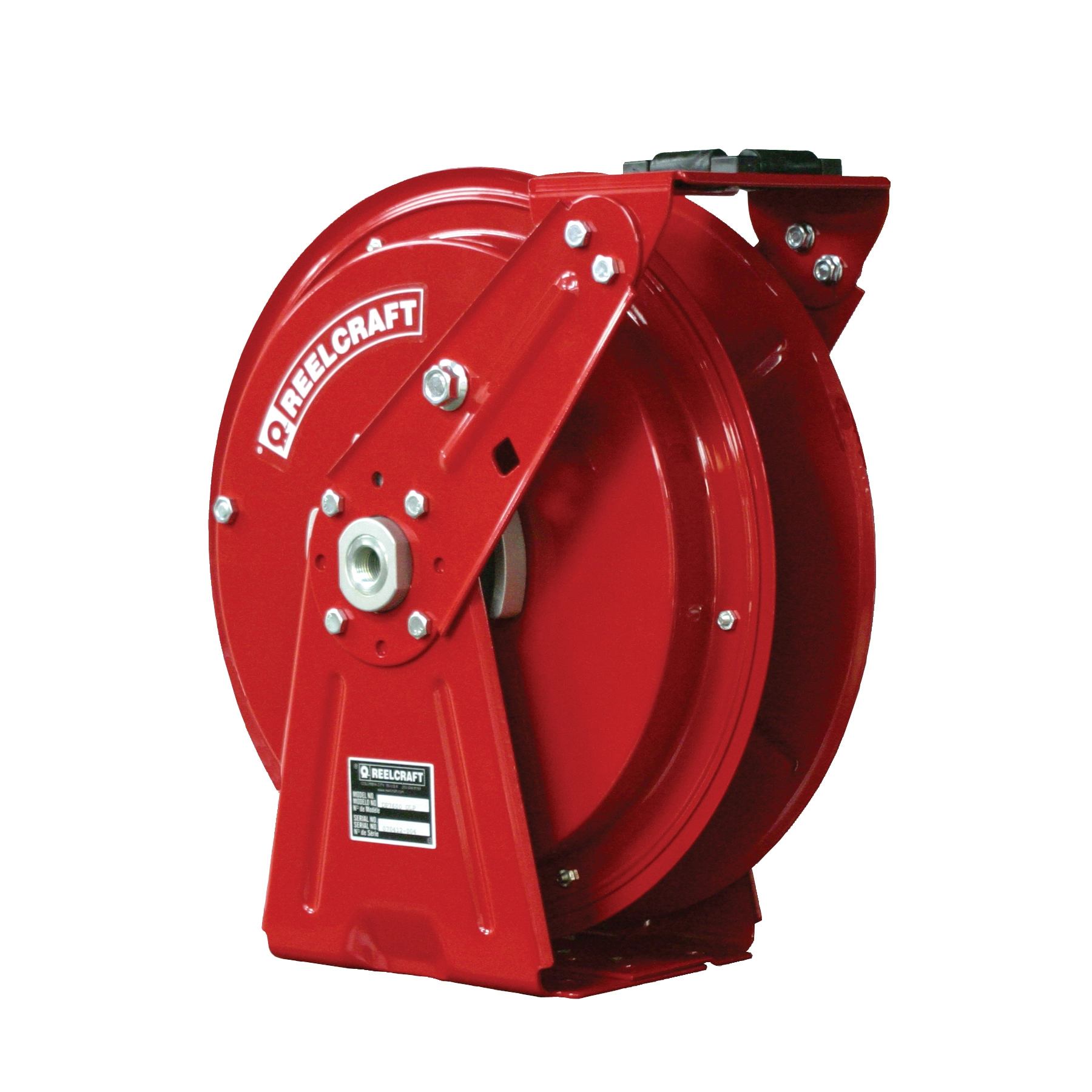

Reelcraft DP7800 OLP Ultimate Duty Air and Water Hose Reel
1/2 in. NPT Inlet(F)Outlet(F), without Hose, 50 ft. Hose, Capacity 500 psi, 1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| DP7800 OLP | 1/2 in. NPT Inlet(F)Outlet(F), without Hose, 50 ft. Hose, Capacity 500 psi, 1/2 in. Hose I.D. | $578.36 |
Contact UsReelcraft - DP7800 OLP - Ultimate Duty Air and Water Hose Reel
Reelcraft's compact, dual pedestal Series DP7000 hose reel features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stand up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. Superbly engineered dual pedestal base and guide arm are structurally reinforced. All-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.- Reinforced steel - Steel guide arm and dual pedestal base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
- Superior latch spring design - The life of the torsion style latch spring far exceeds that of conventional coil springs.
- Long life drive spring - Declutching arbor eliminates reverse spring winding, and torsion latch spring is virtually unbreakable. High-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
Specifications
- Inlet: 1/2" NPT(F)
- Outlet: 1/2" NPT(F)
- PSI: 500 psi
- Max Temperature: 210 °F
- Hose I.D.: 1/2"
- Hose O.D.: 0.75"
- Hose Length: 50'
- Hose Included: No
Dimensions
| A | 17" |
| B | 16.5" |
| C | 7" |
| D | 5" |
| E | 9" |
