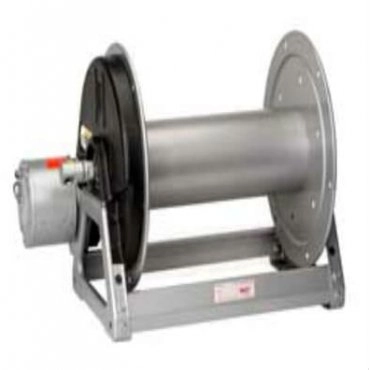

Hannay Reels A1516-17-18 Air Rewind Hose Reel for Lawn Care, Pest Control, Pressure Washing, Agriculture, Steam Cleaning, Water, Air
1/2 in. Inlet(F)/Outlet(F), without Hose, 125ft. capacity, 3000 psi., 1/2 in. I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| A1516-17-18 | 1/2 in. Inlet(F)/Outlet(F), without Hose, 125ft. capacity, 3000 psi., 1/2 in. I.D. | $1,005.55 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| 1500-C2ROLASL | C2 Roller Assy. Installed (spool width, 12 in. or smaller) | $191.10 | |
| 1500-C2ROLASH | C2 Roller Assy. Installed (spool width, 12 in. or larger) | $209.30 | |
| 99 17.0302 | RCB-40 (RELAY and 40A BREAKER) UNIT W/MTG PLATE | $95.55 | |
| 1500-PSI3150 | PSI Rating between 3100 and 5000 (Sched. 80) | $31.85 | |
| 1500-PSI3150 | PSI Rating between 5100 and 10,000 (Barstock) | $163.80 | |
| 1500-RCPRR | Removable Crank on Power Rewind Reels | $62.79 | |
| 1500-FEMB | Factory-mounted External Mounting Brackets | $32.76 |
Contact UsHannay Reels - A1516-17-18 - Air Rewind Hose Reel for Lawn Care, Pest Control, Pressure Washing, Agriculture, Steam Cleaning, Water, Air
- Lightweight, compact reels designed for long lengths of hose in manual and power rewind.
- Direct crank rewind is permanently attached.
- Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
- Manual reels include: cam-lock drag brake, spring actuated pin lock.
- Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads.
- Standard outlet: 1/2" female NPT threads.
- Optional rollers: specify roller position when ordering.
- Pressures to 3000 psi (207 bar).
- Temperatures from +20° F to +400° F (-7° C to +204° C).
- Consult factory for other pressures and temperatures.
IMPORTANT: Hose Reel Component Locations
All Hannay Hose Reels ship with standard component locations (components meaning inlet, outlet riser and rewind mechanism). Other options available upon request. Please note in checkout comments or email/call us to confirm alternative component locations. To see component location options Click Here.
