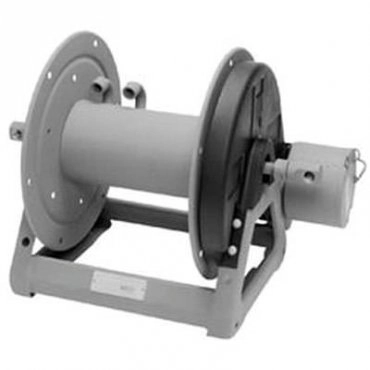

Hannay Reels HD2030-17-18 Hydraulic Rewind Hose Reel for Hydraulics, Spray Painting, Air, Water
1/2 in. NPT Twin Inlet(F)/Outlet(F), without Hose, 175ft. Hose Capacity, 1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| HD2030-17-18 | 1/2 in. NPT Twin Inlet(F)/Outlet(F), without Hose, 175ft. Hose Capacity, 1/2 in. Hose I.D. | $928.20 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| 2000-12VRCB | 12V DC Relay and Circuit Breaker (w/ switch) | $72.80 | |
| 2000-PSI3150 | PSI Rating between 3100 and 5000 (Sched. 80) | $40.95 | |
| 2000-PSI5100 | PSI Rating between 5100 and 10,000 (Barstock and H10M swivel) | $268.45 | |
| 2000-C2RA12S | C2 Roller Assy. Installed (spool width, 12 in. or smaller) | $191.10 | |
| 2000-C2RA12L | C2 Roller Assy. Installed (spool width, 12 in. or larger) | $209.30 |
Contact UsHannay Reels - HD2030-17-18 - Hydraulic Rewind Hose Reel for Hydraulics, Spray Painting, Air, Water
- Two swivel joint inlets and two outlet risers to handle two equal lengths of hose
- Chain-drive crank rewind or chain and sprocket rewind powered by an electric or compressed air motor
- MX crank rewind reels have pinion brake as standard
- Power rewind reels are not supplied with a brake
- Standard inlets: 90° ball bearing swivel joints, 1/2" female NPT threads
- Standard outlets: 1/2" female NPT threads
- Standard pressures to 3,000 psi (207 bar), available up to 10,000 psi (690 bar) - must specify
- Standard fluid temperatures from -15° F to +250 °F (-26° C to +121° C). Optional temperature ratings available - consult factory.
- See 2400 Series welding reels for use with oxygen/acetylene
IMPORTANT: Hose Reel Component Locations
All Hannay Hose Reels ship with standard component locations (components meaning inlet, outlet riser and rewind mechanism). Other options available upon request. Please note in checkout comments or email/call us to confirm alternative component locations. To see component location options Click Here.
