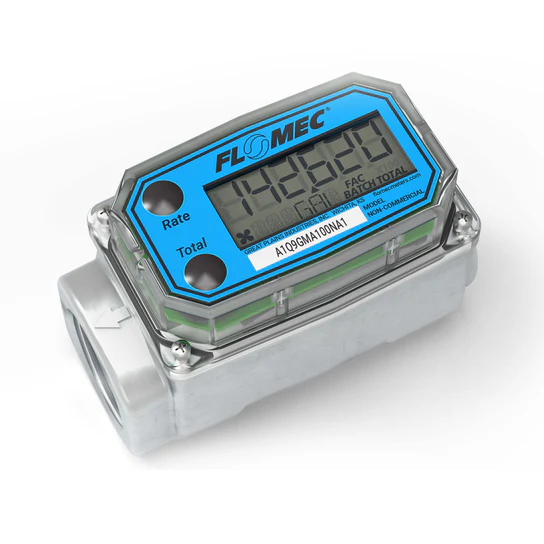

GPI - A1Q9GMA100NA1 - Turbine Digital Fuel Flow Meter

FLOMEC® A1 Series Turbine Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. NOTE: If the meter includes any module (4-20mA or Pulse Out) that introduces external power, then all intrinsic safety approvals are voided.

• Unique package combines Turbine and LCD into a self-contained, compact, economical meter
• Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
• Output capabilities available to communicate with process control equipment
• Lightweight, compact design allows for easy installation
• 12 selectable engineering units (gallons or liters are standard defaults)
• Factory calibration
• AAA Alkaline battery life: 2 years

Specifications:

• Flow Range: 3 - 50 GPM (11 - 190 L/min)
• Accuracy (% of Reading): +/- 1.5%
• Technology: Turbine
• Pressure Rating: 300 PSI (20.7 bar)
• Operating Temperature: 0° F to 129° F (-18° C to 54° C)
• Connection Type/Size: NPT (Female), 1-inch
• Pipe Size: 1-inch
• Meter Housing Material: Corrosion-Resistant Aluminum
• Wetted Materials: 316 Stainless Steel | Aluminum | Ceramic | Nylon | Tungsten Carbide
• Warranty: 2-yr meter warranty
• Approvals: CE, ATEX, NEMA 4, IP65, FM Approved, c-us FM Approved, IEC/IECEx
