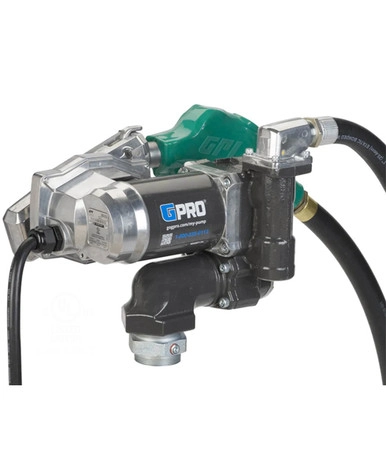

GPI - 170000-06 - Model: V25-012AD+XTS - GPRO 12V DC Transfer Pump

The GPRO V25 series is the next-generation modular vane pump. The V25 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 12V DC motor delivers up to 25 GPM (94 L/min). It’s fast and flexible; able to load up to 750 gallons of fuel uninterrupted, with a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature Series (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical and it must be a quick and dependable process.

• Equipped with Safe Stop, a timer that automatically turns the pump off to prevent running unattended and exceeding a thirty-minute duty cycle. Turn the power switch off and back on again to reset timer and resume operation. Over Voltage Sensor protects the 12V(dc) pump motor from damage if it is connected to incorrect 24V(dc) power supply.
• Extreme Temperature model - will not fail in cold conditions.
• Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter or both.
• Multidirectional 90-degree outlet to adapt easily for your application
• Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
• Internal Check Valve w/Perfect Prime to keep pump head primed and ready to work, reduces wear avoiding dry prime conditions.
• Easy Access to fuel strainer - simply remove two bolts and strainer cover
• Tank Adapter Included for easy installation, ready for anti-siphon vent kit.

Specifications:

• Max. Flow Rate: 25 GPM (94 L/min)
• Voltage Input: 12V (DC)
• Technology: Sliding Vane
• Amps Rated: 35 amps
• Duty Cycle: 30 min on/30 min off
• Power Cord: 18 ft. (5.5m), 10/2 AWG, Factory Installed
• Max. Discharge Pressure: 20 PSI ( 1.38 bar)
• Operating Temperature: -40° F to 125° (-40° C to 52° C)
• Suction Lift: Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C)
• Discharge Lift: Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
• Pump Housing Material: Cast Iron
• Wetted Materials: Acetal | Aluminum | Carbon | Cast Iron | FKM | NBR | PBT/Polyester | Steel
• Mounting Type/Thread: Direct Mount, 2in. MNPT
• Suction Pipe: Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
• Inlet: 1 in. FNPT
• Outlet: Modular, 1 in. FNPT
• Dispensing Hose: 18ft. (5.5m) x 1 in. MNPT UL Listed Hose Assembly
• Nozzle: 1 in. FNPT Inlet, Automatic Shut-off, Diesel
• Nozzle Holder Type: Lockable with Drip Catch
• Warranty: 5-year pump warranty
• Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
