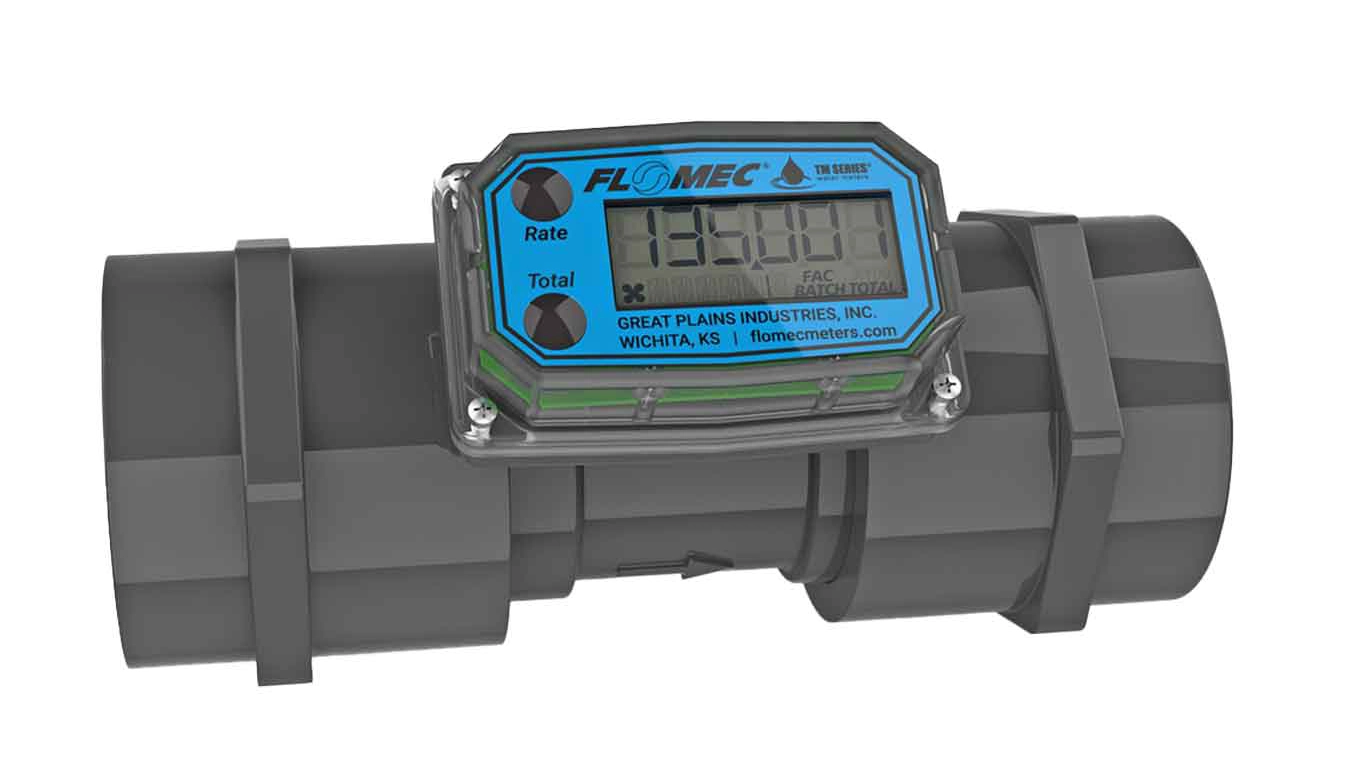

GPI - TM20NQ9GMB - Turbine Digital Water Flow Meter

The FLOMEC TM Series is constructed of Schedule 80 PVC for a long-lasting solution exceeding flow measurement requirements. It’s one of the most versatile meters in the industry with fitting types that allow you to customize the meter to your application needs.

• Features highly visible Q9, battery-powered, LCD display; 2-year battery life
• Add the 4-20mA Module to your turbine meter display electronics to provide an industry-standard analog signal for connection to a variety of chart recorders, display equipment, and process control equipment. See Optional Output Module details.
• 11 pre-programmed engineering units plus 1 custom option: gallon, litre, imperial gallon, quart, ounce, acre-foot, millilitre, cubic foot, cubic centimetre, cubic metre, barrel
• Modular design allows for use with output modules, sensors, and remote display kits; plug and play

Specifications:

• Flow Range: 20 - 200 GPM (76-760 L/min)
• Accuracy (% of Reading): +/- 3.0%
• Technology: Turbine
• Pressure Rating: 225 psi @ 73° F (15.3 bar @ 23° C)
• Operating Temperature: +32°F to +140°F (0°C to +60°C)
• Connection Type/Size: NPT (Female), 2-inch
• Pipe Size: 2-inch
• Meter Housing Material: Schedule 80 PVC
• Wetted Materials: 316 Stainless Steel | Ceramic | PVC | PVDF | Tungsten Carbide
• Warranty: 2-yr meter warranty
• Approvals: CE, NEMA 4, IP65
