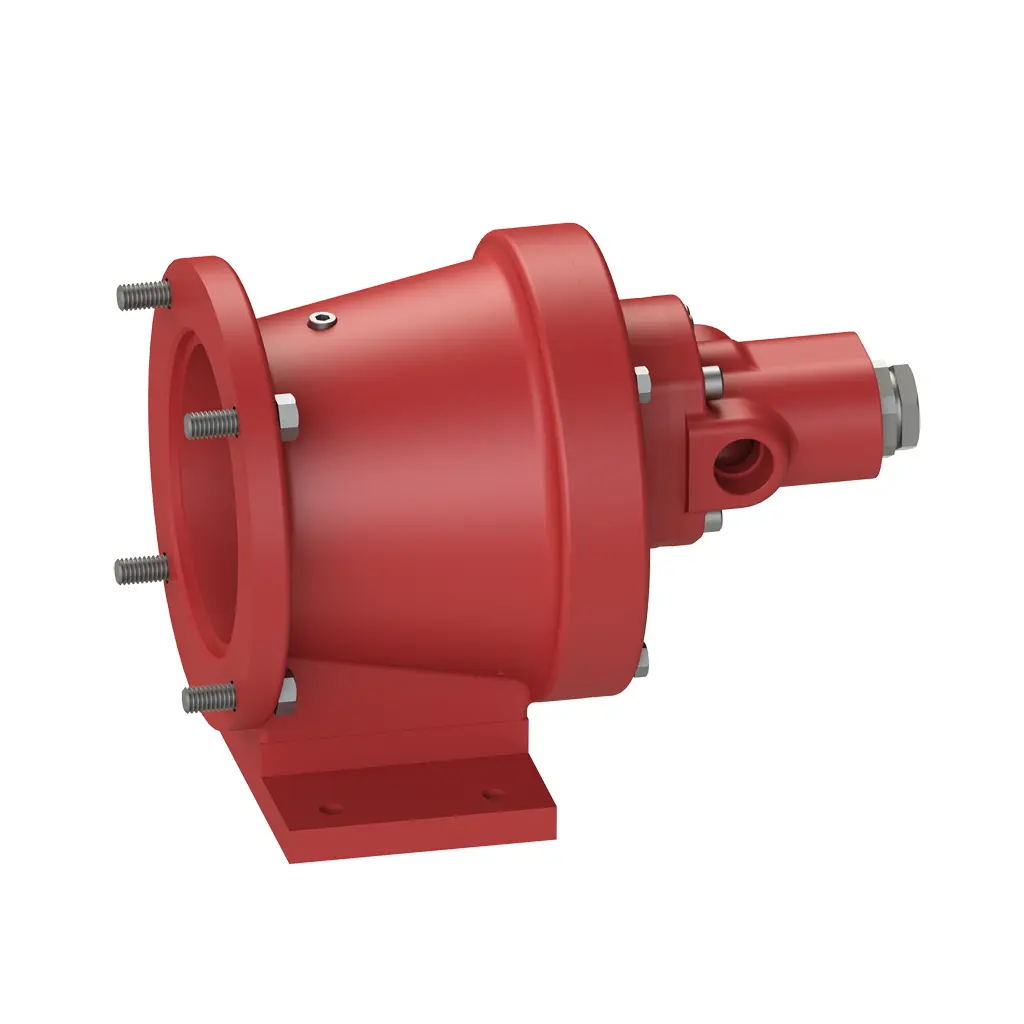

Roper V Series Magnetic Drive Gear Pumps
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | |
|---|---|---|---|
| V Series | Magnetic Drive Gear Pumps | Call For Price | |
Contact UsRoper - V-Series - Magnetic Drive Gear Pumps
The V Series is a magnetic drive, seal-less helical gear pump. It has neodymium magnets with up to 5ft/lb torque in strength and a stainless steel containment shell. This pump has ductile iron housings with hardened steel gears and shafts, plus through ports. The V Series is capable of running at nominal 1800 rpm motor speeds, and has up to 5.4 GPM max flow.
Product Brochure- Helical Gears for Quiet Operation
- Bi-Directional Rotation
- Designed for Close-Coupled or Foot-Mounted Construction
- Sealless Design
- Self Priming
- Ductile iron housings
- Hardened steel shafts
- Hardened steel gears
- Helical gears for quiet operation
- Carbon bearings
- Neodymium magnets up to 5ft/lb torque
- Stainless steel containment shell
- Close coupled mounting standard; optional foot mounted bracket
- Integral Pressure Relief Valve
- Buna, Viton® or Teflon™ O-rings
- Bi-directional rotation
- Chemical process
- Gasoline additives
- Adhesives
| Model | Capacity | Max Speed | Max Flow | Max Pressure | Temp Ranges | Port Connection |
|---|---|---|---|---|---|---|
| V05 | .0005 GPR (.0018 LPR) | 1800 RPM | .9 GPM (3.4 LPM) | 150 PSI (10 Bar) | Up to 225°F | 1/2" NPT |
| V10 | .001 GPR (.0037 LPR) | 1800 RPM | 1.8 GPM (6.8 LPM) | 150 PSI (10 Bar) | Up to 225°F | 1/2" NPT |
| V20 | .002 GPR (.0075 LPR) | 1800 RPM | 3.6 GPM (13.6 LPM) | 150 PSI (10 Bar) | Up to 225°F | 1/2" NPT |
| V30 | .003 GPR (.011 LPR) | 1800 RPM | 5.4 GPM (20.4 LPM) | 150 PSI (10 Bar) | Up to 225°F | 3/4" NPT |
