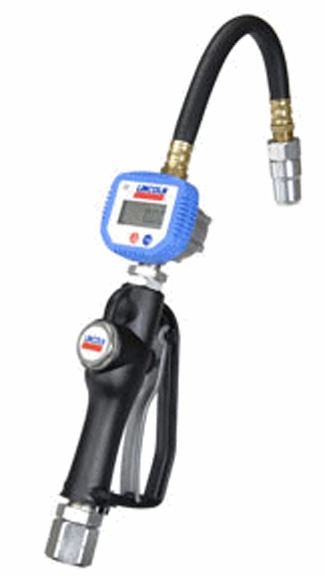

Lincoln 280690 Oil Control Handle
3/4 in. NPT (F) Inlet, 1/2 in. NPT (F) Outlet, 1500 psi, 15 GPM Max, for Oils, ATF and Antifreeze, Flex Stem
Ships From Manufacturer
Select Model & Quantity:
Model # | Description | Price | Qty |
---|---|---|---|
280690 | 3/4 in. NPT (F) Inlet, 1/2 in. NPT (F) Outlet, 1500 psi, 15 GPM Max, for Oils, ATF and Antifreeze, Flex Stem | $712.40 |
Lincoln - 280690 - Oil Control Handle
This unique design provides superior flow rates, up to 15 GPM, compared to industry standards. The handle design minimizes pressure loss between the inlet and outlet, proven in head-to-head testing, resulting in a higher flow of product.
Increase efficiency by dispensing large quantities of fluid at a faster rate which is a welcomed solution for multiple applications. The low temperature rating, down to -4° F, will allow the meter to be used in cold environments where electronic meters previously experienced LCD wash-out.
- Electronic High Flow Programmable Flow Valve.
- 3/4 in. inlet NPT.
- 1/2 in. outlet NPT hose.
- Semi-Automatic tip.
- 1500 PSI max operating pressure.
- 15 GPM max flow rate.
- Digital meter runs on two AAA batteries.
- Suitable for: Engine Oil, Diesel Oil, ATF (With a max viscosity SAE140) and Ethylene Glycol based Antifreeze/Anit-Boil mixtures (With Max 50% Water).
