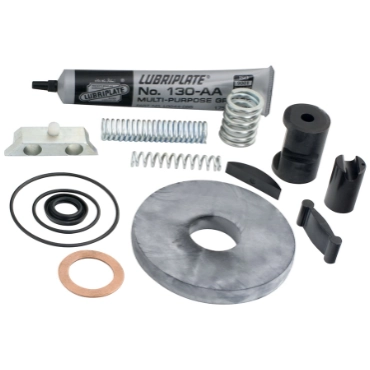

Alemite 398978-4 Repair Kit
For 323440-4, 323440-A1, 323440-C1, 323440-D1 and 323440-E1
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 398978-4 | For 323440-4, 323440-A1, 323440-C1, 323440-D1 and 323440-E1 | $418.26 |
Contact UsAlemite - 398978-4 - Repair Kit
Kit Includes:- (1) O-ring 1-9/16" ID x 1-3/4" OD
- (2) Copper gasket 1.646" OD
- (2) Plunger
- (2) Toggle
- (2) Spring 2.44" long
- (2) Spring 3.00" long
- (2) Spring 1-5/16" long
- (2) Stop
- (2) Valve guide
- (4) Lockwasher 5/16"
- (4) Cap screw 5/16" -18 x 1"
- (1) Shuttle
- (1) O-ring 2-11/16" ID x 2-7/8" OD
- (1) V-Packing
- (2) O-ring 4" ID x 4-1/4" OD
- (1) Washer 0.52" ID
- (1) Retaining ring 7/8" Diameter
- (1) O-ring 5/8" ID x 3/4" OD
- (1) Packing
- (2) O-ring 5/8" ID x 13/16" OD
- (1) V-Packing
- (1) O-ring 1-13/16" ID x 2" OD
- (1) O-ring 1-15/16" ID x 2-18" OD
