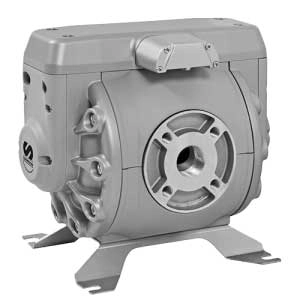

Samson 554030 Directflo 250 Aluminum Diaphragm Pump
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 554030 | Directflo 250 Aluminum Diaphragm Pump | $1,367.15 |
Samson - 554030 - Directflo 250 Aluminum Diaphragm Pump
Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.- Pump Pressure Ratio - 1:1
- Maximum Free Flow Rate - 66 gal/min (250 l/min)
- Maximum Suction Lift - 26'
- Minimum Air Pressure - 20 psi (1.5 bar)
- Maximum Air Pressure - 115 psi (18 bar)
- Max Size Solid Suspension - 1/4"
- Air Inlet - 1/2" NPTF
- Fluid Outlet - 1 1/2" NPTF
- Fluid Inlet - 1 1/2" NPTF
- Wetted Materials - TPE, Aluminum, Acetal
