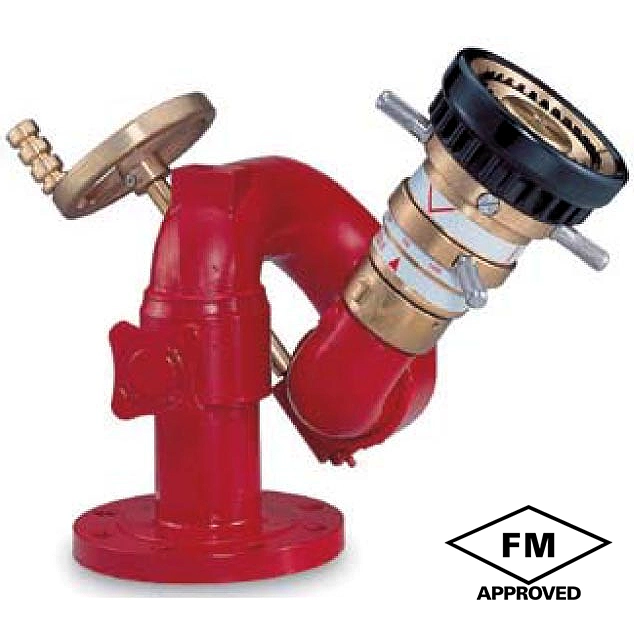

Seal Fast 611-1 4 in. Single Waterway Monitor
4 in. NPT x 2-1/2 in. Flanged Outlet, 1250 GPM, FM Approved - Single Water Monitor
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | |
|---|---|---|---|
| 611-1 | 4 in. NPT x 2-1/2 in. Flanged Outlet, 1250 GPM, FM Approved - Single Water Monitor | Call For Price | |
Seal Fast - 611-1 - 4 in. Single Waterway Monitor
Corrosion resistant bronze construction. Ideal for Marine, Offshore, Industrial or other corrosive environments. Full 3 in. Water way flows up to 1250 GPM. Full 360 degree rotation with positive twist lock. Vertical travel from 70 degrees above to 70 degrees below horizontal. Vertical travel is controlled by hand wheel with worm gear fully enclosed. Worm Gear is protected from elements with double row Stainless Steel Ball Bearings at all rotation joints. 4 in. Male Flange Inlet x 2-1/2 in. NST Outlet. Nozzle Not Included.| Connection | 4 in. NPT x 2-1/2 in. NST Outlet |
| Height | 16 in. |
| Width | 15 in. |
| Flow Rate | 1250 GPM |
| Waterway Size | 3 in. |
| Angle Rotation | 360° |
| Weight | 56 lbs. |
| Approval | FM Approved |
