Bus/Heavy Duty Truck Receptacles

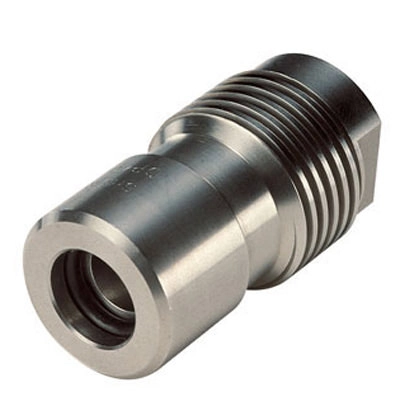

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

OPW CL5 Bus/Heavy Duty Truck Receptacles

3,600 psi

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
CL50 3,600 psi, 7/8 in. -14 SAE -10 Female Port $562.06
CL5000 3,600 psi, 5/8 in. Double Ferrule Fitting $683.02
CL5078 3,600 psi, 7/8 in. -14 SAE -10 Male O-Ring Fitting $591.37
Contact Us
OPW - CL5 - Bus/Heavy Duty Truck Receptacles

OPW now adds stainless steel receptacles to their line of heavy-duty refueling receptacles. The new CL50 Series design is the result of many years of experience in the demanding NGV environment.

  • Body: - stainless steel
  • Internal Parts: - stainless steel
  • Seals: - specialty formulated polymers and elastomers specific to high pressure NGV applications
  • Durable, Corrosion-Resistant Construction: - all OPW Receptacles are made from stainless steel. Also available is specially formulated brass. Both materials are proven in the harsh refueling environment.
  • Non-Contact Check Valve: - each OPW NGV receptacle contains a highly reliable non-contact check valve that opens only when differential pressure is present during fueling.
  • Improved Sealing System: - the sealing system in all CL series receptacles consists of a stainless steel poppet that aligns with a rearward facing captured seal located in the receptacle body. This arrangement prevents seal wash out during high flow deformation and has exceptional wear resistance under all operating pressure and temperature conditions.
  • High Flow: - the flow path has been redesigned to increase the amount of flow and decrease the pressure drop resulting in a reduction of noise/vibration from the check valve during the "end of fill."
  • Rubber Dust Cap: - a standard protective dust cap is supplied with CL50 series receptacles.
  • Serviceable O-Ring: - designed to prevent leakage at the connection point.
  • Individually Leak Tested and Inspected.
OPW CL50 Series Bus/Heavy Duty Truck Receptacles

Listings and Certifications"
  • Min. Flow Rate: - 5,000 SCFM @ 3000 psid
  • Temperature Range: - 40°F to 250°F (-40°C to 120°C)
  • Cv: - 3.3
  • Design Pressure: - 5000 psi (345 Bar)
  Inches Millimeters
A 1.25 38.1
B 1.25 32
C 1.39 35
D 2.67* See Chart Below 68*
E 0.31 8
F SAEJ1926-10 7/8-14 UNF
*D-Dimensions for:
  Inches Millimeters
CL5000 4.8 122.1
CL5016 4.96 126.1
CL5078 3.76 95.6
Product # Type/Size Maximum Allowable Service Pressure Weight
CL50 7/8" - 14 SAE-10 Fernale Port 3,600 psi (248 Bar) .91 lbs, .410 kg
CL5000 5/8" Double Ferrule Fitting 3,600 psi (248 bar) 1.29 lbs. 0.587 kg
CL5078 7/8" - 14 SAE-10 Male O-Ring Fitting 3,600 psi (248 bar) 1.141 lbs. 0.520 kg
