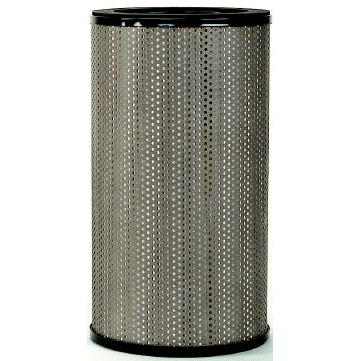

Facet CC-23C 25 Micron Coalescer Cartridge
7-5/8 in. x 13-11/16 in.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| CC-23C | 7-5/8 in. x 13-11/16 in. | $251.36 |
Facet - CC-23C - 25 Micron Coalescer Cartridge, 7-5/8 in. x 13-11/16 in. Flow Direction: Outside to Inside, (7-5/8 in. Outside Diameter)
Facet's standard carbon steel VCS Series SuperFlex&trad; Coalescer Separators are small, economical housings for in-line removal of water and solids from aviation fuels where water content is a problem. Using Facet high quality coalescer and separator cartridges, they provide the best water and solids removal.
RELIABLE PERFORMANCEFacet coalescer separators are a result of over 50 years of continuous research and development to meet the ever demanding performance requirements in the aviation fuel handling industry. This, along with proven field performance, demonstrates Facet's ability to provide quality products that meet current specifications as well as specific customer requirements for installations in refineries, bulk storage, terminals, heliports, airports, etc.
- Provides two-stage coalescing and separation
- Recommended maximum operating temperature: 240°F (115°C)
- Maximum differential pressure: 75 psi (517 kPa)
- pH range from 5 to 9
- Flow direction: Outside to in
- All metal components coated to protect against corrosion
- Standard gaskets are Buna-Nother materials available on request
| Model Number | Micron Rating | OD | ID | Nominal Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| in. | mm. | in. | mm. | in. | mm. | lbs. | kgs. | ||
| CC-23C | 25 | 7-5/8 | 194 | 5-5/8 | 143 | 13-11/16 | 350 | 4 | 1.8 |
