Spring Rewind Fuel Hose Reel
Spring Rewind Fuel Hose Reel
Spring Rewind Fuel Hose Reel
Two Year Manufacturer Warranty

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

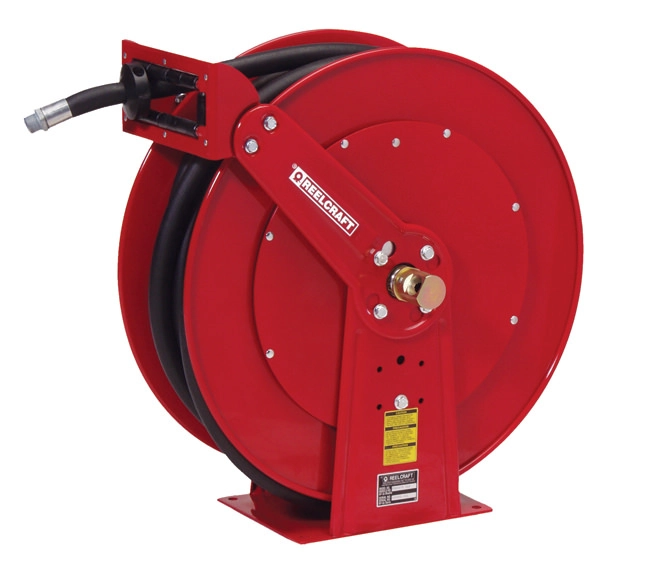

Reelcraft FD83075 OLP Spring Rewind Fuel Hose Reel

3/4 in. NPT Inlet(F)/Outlet(F), with 75 ft. (50 psi) Hose, 250 psi (Reel), 3/4 in. Hose I.D.

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
FD83075 OLP 3/4 in. NPT Inlet(F)/Outlet(F), with 75 ft. (50 psi) Hose, 250 psi (Reel), 3/4 in. Hose I.D. $1,232.78
Contact Us

Not for use with jet fuel or high octane aviation fuel.

Reelcraft FD83075 OLP Fuel Hose Reel

Reelcraft's spring retractable fuel delivery reels, equipped with Viton seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD80000 reels are supplied with our ball-bearing style swivel.

  • Robust Latching mechanism - Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
  • Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
  • Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
  • Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
Model A B C D E F
FD83075-OLP 25.375 in. 24 in. 7.875 in. 10.5 in. 13 in. 10.375 in.
Reel Dimensions
  • Industrial
  • Agriculture
  • Automotive service centers
  • Farm & ranch
  • Mining (above ground)
  • Service trucks
  • Fleet maintenance facilities
  • Fluid transfer
  • Aircraft maintenance
  • Fuel transfer
Model# Hose Length Inlet (F)NPTF Outlet (M)NPTF Hose I.D. Hose O.D. Pressure Weight
FD83075-OLP 75 ft.
23 m
3/4 in. 3/4 in. 3/4 in.
19 mm
1.188 in.
30 mm
50 psi 115 lb
52 kg



Guide Arm Position
