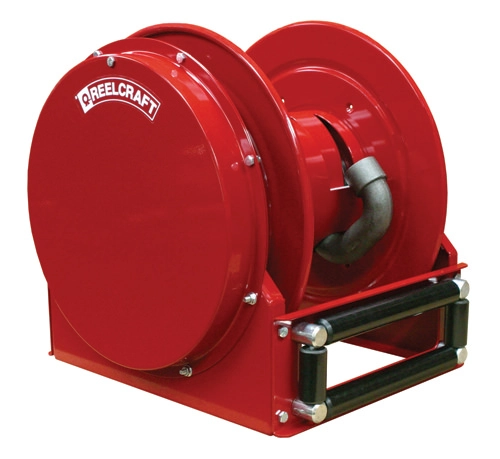

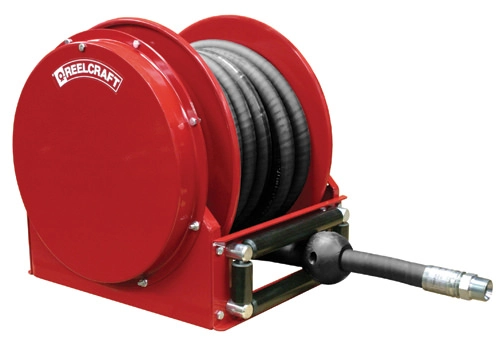

Reelcraft FSD14050 OLP Spring Rewind Fuel Hose Reel
1 in. NPT Inlet(F)/Outlet(F), with 50 ft. (50 psi) Hose, 250 psi (Reel), 1 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| FSD14050 OLP | 1 in. NPT Inlet(F)/Outlet(F), with 50 ft. (50 psi) Hose, 250 psi (Reel), 1 in. Hose I.D. | $1,439.40 |
Not for use with jet fuel or high octane aviation fuel.
Series SD10000 ManualReelcraft FSD14050 OLP Fuel Hose Reel
Reelcraft's spring retractable fuel delivery reels, equipped with Viton seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85.
- Robust Roller Guides - High impact UHMW composite roller guides have outstanding wear and corrosion resistance.
- Containerized external drive spring is easily and safely serviced.
- Ductile iron fluid path is strong and reliable.
- Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life.
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| FSD14050-OLP | 18.25 in. | 19.125 in. | 14 in. | 13.25 in. | 20.75 in. | 10 in. |
| Model# | Hose Length | Inlet (F)NPTF | Outlet (M)NPTF | Hose I.D. | Hose O.D. | Pressure | Weight |
|---|---|---|---|---|---|---|---|
| FSD14050-OLP | 50 ft. 15 m |
1 in. | 1 in. | 1 in. 25 mm |
1.5 in. 38 mm |
50 psi | 127 lb 58 kg |
