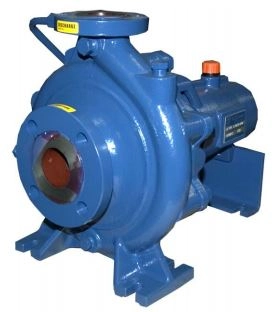

Gorman-Rupp VGH1 1/4B31-B Basic Pedestal Standard Centrifugal Pump
1-1/4 in. Ductile Iron Casing, Cast Iron Impeller, ANSI Flange, Silicon Carbide Seal
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| VGH1 1/4B31-B | 1-1/4 in. Ductile Iron Casing, Cast Iron Impeller, ANSI Flange, Silicon Carbide Seal | $5,558.00 |
Gorman-Rupp - VGH1 1/4B31-B - Basic Pedestal Standard Centrifugal Pump
Pump Specifications
Spec Sheet- Size: 2" x 1 1/4" (51 mm x 32 mm) Raised Face Flanges.
- Casing: Ductile Iron. Maximum Operating Pressure 120 psi (827 kPa).
- Enclosed Type, Six Vane Impeller: Gray Iron 40. Handles 15/64" (6 mm) Diameter Spherical Solids.
- Impeller Shaft: Steel 1045.
- Two Replaceable Wear Rings: Gray Iron 25.
- Seal Plate: Ductile Iron.
- Bypass Flush Piping.
- Bearing Housing: Gray Iron 25.
- Radial Bearing: Open Single Row Ball.
- Thrust Bearing: Open Double Row Ball.
- Bearing Lubrication: SAE 30 Non-Detergent Oil.
- Gaskets: Nitrile Rubber.
- Hardware: Standard Plated Steel.
- Bearing Housing Level Oiler.
- Optional Equipment: Strainer. NPT Suction and Discharge Flanges. Stainless Steel Impeller. Consult Factory for Optional Seals.
Seal Specifications
Mechanical, Self-Lubricated. Silicon Carbide Rotating and Stationary Faces. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 316 Shaft Sleeve and Spring. Maximum Temperature of Liquid Pumped, 160F (71C).
