Fill-Rite - FR700VN, V, VA - 115V AC Fuel Transfer Pump

Is your order time-sensitive? Send us an email or call us to see which suppliers are experiencing material shortages or delayed shipping times.

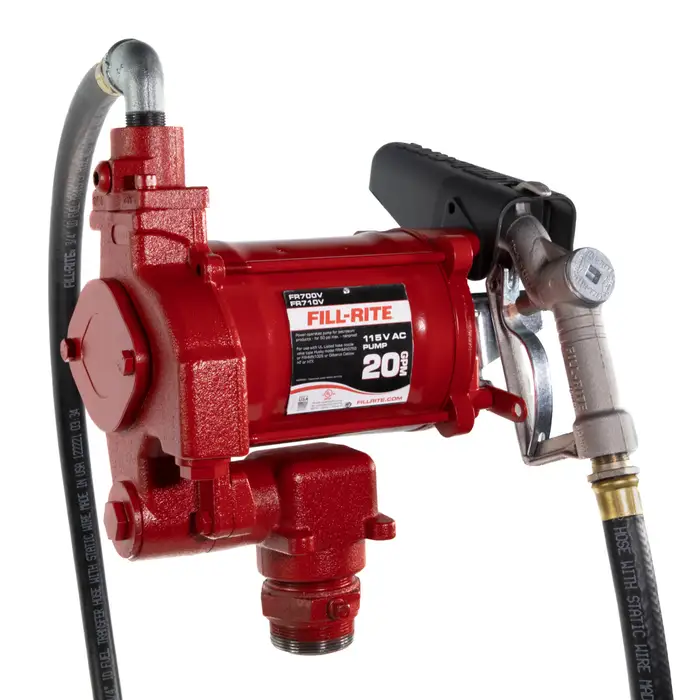

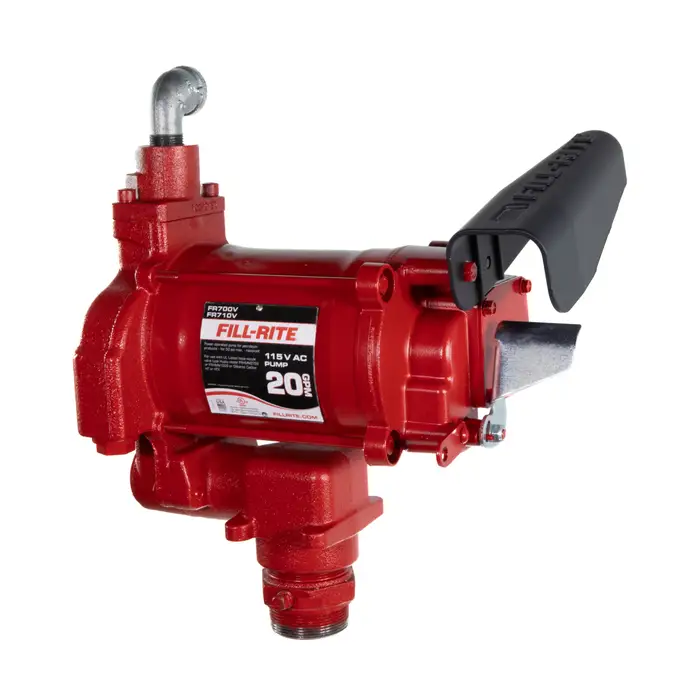

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

Fill-Rite FR700VN & FR700V 115 Volt AC Fuel Transfer Pump

1 in. Outlet, 20 GPM, 115 Volt Pump

Ships From Manufacturer

Select Model & Quantity:

Model #	Description	Price	Qty
FR700VN	20 GPM, 115 Volt Pump (Pump Only)	$684.99
FR700V	20 GPM, 115 Volt Pump with Hose and Manual Nozzle	$739.99

Add Optional Accessories

Model #	Description	Price
T-45	3/4 in. 45 degree Swivel for Diesel	$28.60
T-3030	30-Micron Particulate Transfer Pump Filter - Recommended for Diesel Fuel, Compatible w/ Unleaded Gasoline	$8.21
T-GL34	Aluminum Filter Head Adapter, 3/4 in. NPT, 1 in. - 12 UNF	$20.58
N3-3G	3/4 in. NPT x 3 in. Galvanized Nipple Pipe	$3.34

Fill-Rite - FR700VN & FR700V - 115 Volt AC Fuel Transfer Pump

This rugged, positive displacement, Heavy Duty pump is UL listed. Explosion proof UL listed 1/3 HP motor (115 VAC-60Hz) with sealed bearings, Heavy Duty switch, thermal overload protection and junction box. Carbon vanes and ceramic/carbon seals reduce wear and repair expense. Integral check valve with pressure relief on outlet side reduces pressure drop and improves vertical lift. Easy removable strainer, automatic bypass valve, 2 in. threaded bung for tank openings.

1 in. Inlet, 3/4 in
Options For Hose w/ Manual or Automatic Nozzle, Meter, Swivel, Filter & Adapter
Explosion-proof UL/cUL listed 1/3 HP motor (115 VAC-60Hz) with sealed bearings
Heavy-duty switch, thermal overload protection and junction box
Carbon vanes and ceramic/carbon seal reduce wear and repair expense
Integral check valve with pressure relief on outlet side reduces pressure drop and improves vertical lift
Easy removable strainer
Automatic bypass valve
2" threaded base for tank openings
No foot valve required
UL/cUL Listed
Rain proof

Model#	Includes	Flowrate
FR700VN	115 VAC Pump Only	20 GPM
FR700V	115 VAC Pump, 3/4 in. x 12 ft. Hose, 3/4 in. Manual Nozzle (Up to 20 GPM)	20 GPM
Flow Meter Option	111018-1 & FR1118A10 Gender: FxF Fitting Size: 1 in. (w/ 3/4 in. adapter) Fitting Type: NPT Measures in: Gallons, Liters, Quarts, or Pints Flow Range: 3 - 26 GPM (11 - 98 LPM) Display: Digital LCD Use With: Diesel and Kerosene
Swivel Option	T-45 Fitting: 3/4 in. NPT Body: Aluminum Inlet Adapter: Aluminum Outlet Adapter: Brass Seals: Viton
Filter Option	T-3030H Thread Size: 1"-12 UNF Flowrate: 25 GPM (94.6 LPM) Max Flow Max Pressure: 50 PSI Use With: Diesel
Filter Option	T-300MB-10 Thread Size: 1"-12 UNF Flowrate: 25 GPM (94.6 LPM) Max Flow Max Pressure: 50 PSI Use With: Gasoline
Adapter Option	T-GL34 Material: Aluminum Fitting: 3/4 in. NPT Inlet/Outlet Nose Outside Thread: 1"-12 UNF
