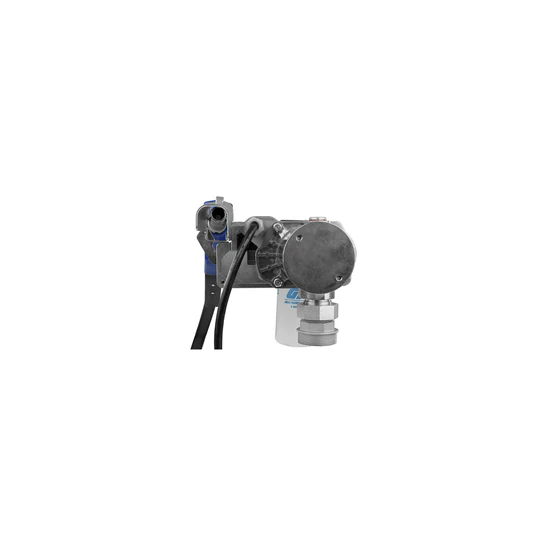

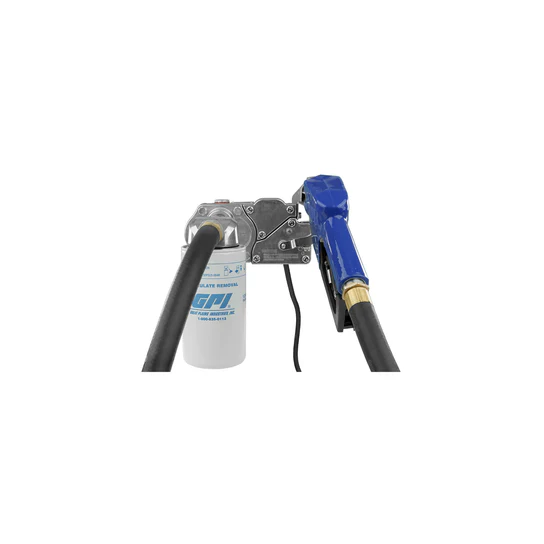

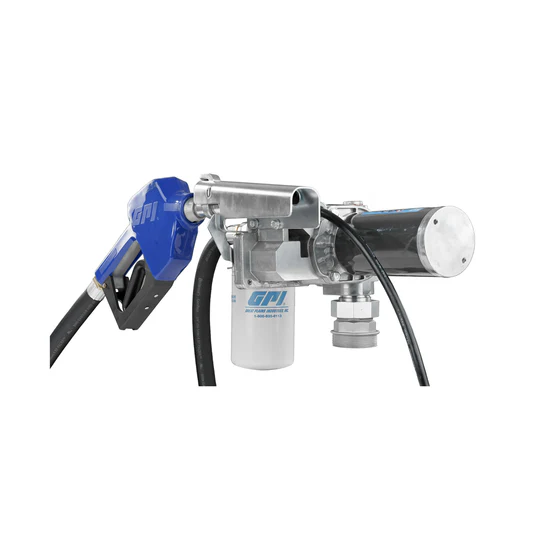

GPI 110612-03 Model: M-150S-AU W/FILTER - 12V DC Fuel Transfer Pump
15 GPM, 1 in. Inlet, 3/4 in. Outlet, w/ Hose and Automatic Nozzle and Filter
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 110612-03 | 15 GPM, 1 in. Inlet, 3/4 in. Outlet, w/ Hose and Automatic Nozzle and Filter | $589.99 |
GPI - 110612-03 - Model: M-150S-AU W/FILTER - 12V DC Fuel Transfer Pump
The GPI M-150S Fuel Transfer Pump is the best-selling retail fuel transfer pump, providing longer run times and award-winning performance year-over-year. Delivering flow rates up to 15 GPM (57 L/min), available in five pump models, the M-150 Series is the pump of choice for agricultural, automotive, and construction applications dispensing gasoline, diesel fuel, and kerosene. Available in a wide selection of configurations with an automatic or manual nozzle, mechanical meter combination, lockable or standard nozzle holders, and a variety of fuel hose lengths. Whether you are harvesting crops, gearing up for your next race, or refueling your fleet of mowers, our M-150 provides reliable flow rates with minimal downtime.
Owner's Manual- Includes a 10 micron, 1-12 UNF particulate filter that removes debris from fuel that may damage your equipment.
- Higher flow rate reduces time spent refueling.
- Convenient spin collar for easy installation; Overload protected motor extends motor life.
- Powder-coated, light-weight aluminum body provides corrosion resistance and reduces tank stress.
- Lockable nozzle holder protects your investment and deters theft.
- Designed for permanent mounting on vented storage tanks.
- Low profile design does not block line of vision.
- UL Listed Motor
Specifications:
- Max. Flow Rate: 15 GPM (57 L/min)
- Voltage Input: 12V (DC)
- Technology: Rotary Gear
- Amps Rated: 18 amps
- Duty Cycle: 30 min on/30 min off
- Power Cord: 18 ft. (5.5m), 12/2 AWG, Factory Installed
- Max. Discharge Pressure: 15 PSI (1.03 bar)
- Operating Temperature: -20° F to 125° F (-29° C to 52° C)
- Suction Lift: Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift: Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material: Powder Coated, Corrosion-Resistant Diecast Aluminum
- Wetted Materials: Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread: Spin Collar, 2in. MNPT
- Suction Pipe: Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
- Inlet: 1 in. FNPT
- Outlet: 3/4 in. FNPT
- Nozzle: 3/4 in. FNPT Inlet, Automatic Shut-off, Unleaded
- Nozzle Holder Type: Lockable
- Warranty: 2-yr pump warranty
- Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
