Sotera - SS455BMS4-HB1 - 12V DC Chemtraveller Chemical Transfer Pump Package

The Sotera SS455BMS4-HB1 model is a 12V DC transfer system designed for bulk transfer with a broad range of chemicals, including water-based acids and solvents. The SS455BMS4-HB1 is manufactured with a portable Chemtraveller® frame, ensuring hassle-free transportation to and from your fields. It also comes complete with a battery cable, suction hose, discharge hose, Sotera 825 Digital Flow Meter, and other fittings.

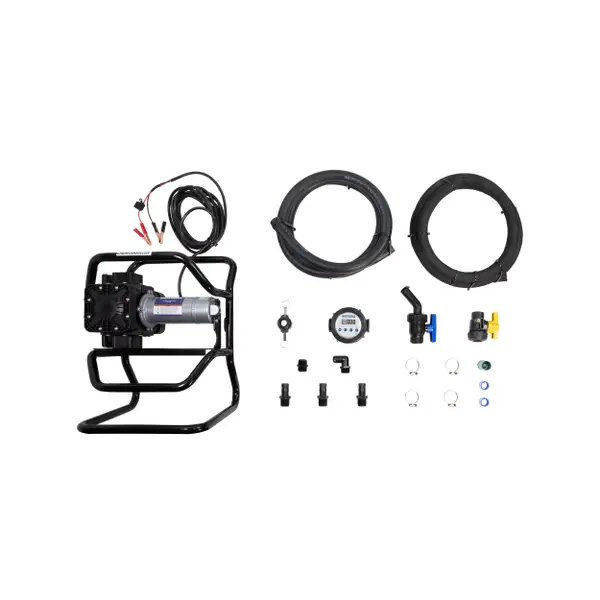

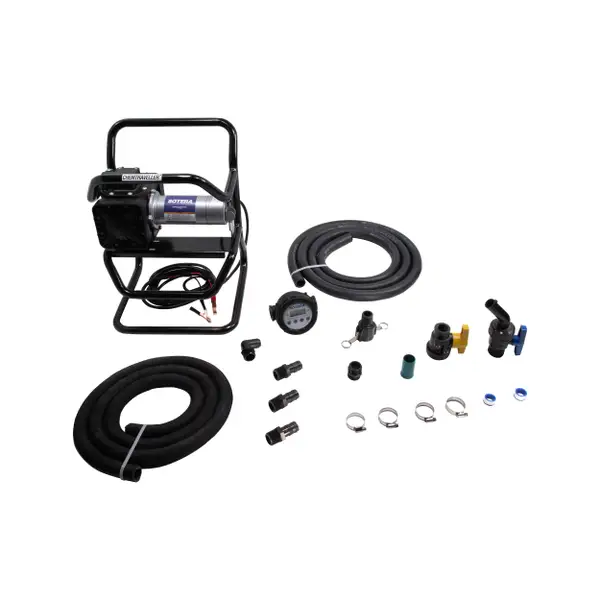

Gen 2: Mild Acids & Solvents. 12V DC Chemtraveller (Short Frame) Double Diaphragm ( Santoprene®) Pump W/ Fluorocarbon Seals. Includes 825 Digital Meter, 20' Battery Cable W/ Clips & 30A Fuse, 1" X 12' Discharge & 1" X 9' Suction EPDM Hoses, Polypropylene Fittings (1": Shutoff Ball Valve W/ & W/Out Tip, Short Poly Pipe Nipple, Shutoff Ball Valve, Female To Male Coupler, 90D Elbow, Hose Barbs, Anti-Drop Nozzle), 1" Hose Clamps & PTFE Tape.

• Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
• Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
• Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment
• Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
• Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller®, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
• 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business

Specifications:

• Max Flowrate: 13 GPM/49 LPM
• Power Type: 12V DC
• Inlet Size: 1" NPT
• Outlet Size: 1" NPT
• Mounting Type: Chemtraveller®
• Duty Cycle (min): 30 min on/30 min off
• Motor Power: 1/4 HP
• Suction Lift: 9 ft.
• Max Operating Pressure: 15 PSI
• Discharge Head: 38 ft.
• Max Current: 20 Amps
