Sotera SS450BXS4-PC0 12V DC Chemical Transfer Pump, Bung Mount Package, EXP Model

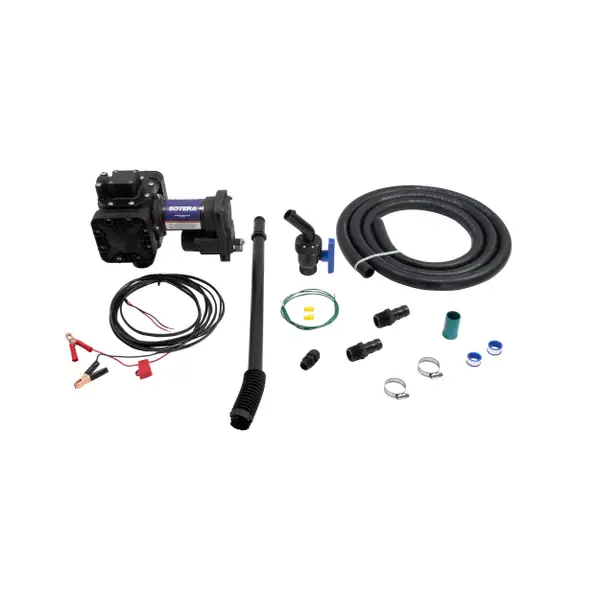

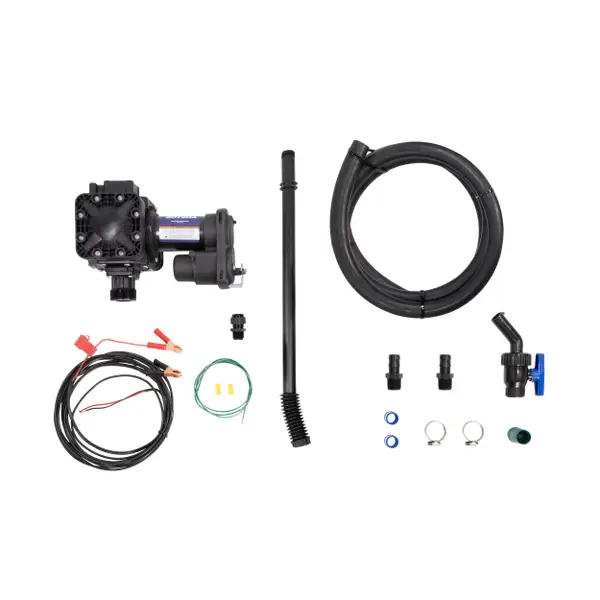

Includes: Pump, Bung Mount, Suction Pipe, EPDM Discharge Hose, 825 Meter, Poly Nozzle and Fittings
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| SS450BXS4-PC0 | Includes: Pump, Bung Mount, Suction Pipe, EPDM Discharge Hose, 825 Meter, Poly Nozzle and Fittings | $1,289.99 |
Sotera - SS450BXS4-PC0 - 12V DC Chemical Transfer Pump, Bung Mount Package
The Sotera SS450BXS4-PC0 model is a 12V DC explosion-proof transfer system designed for bulk transfer with a broad range of chemicals, including water-based acids and solvents. The SS450BXS4-PC0 is manufactured with an bung mount, inlet suction pipe, outlet EPDM discharge hose, battery power cable, nozzle and various fittings.Gen 2: Mild Acids & Solvents. 12V DC Exp Double Diaphragm (Santoprene®) Pump W/ Fluorocarbon Seals. 2" Bung Mount. Includes 20' Battery Cable W/ Clips & 30A Fuse, 5' Ground Wire (Not Installed), 1" X 12' EPDM Discharge Hose, 28" - 46" Polypropylene Telescoping Suction Pipe W/ Bellows, Polypropylene Fittings (1": Shutoff Ball Valve With Tip, Hose Barbs, Anti-Drip Spout), Hose Clamps, Cable Gland, Wire Nuts & PTFE Tape.
- Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
- Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
- Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment
- Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller®, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
- 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business
Specifications:
- Max Flowrate: 13 GPM/49 LPM
- Power Type: 12V DC
- Inlet Size: 1" FNPT
- Outlet Size: 1" FNPT
- Mounting Type: Bung Mount
- Duty Cycle (min): 30 min on/30 min off
- Motor Power: 1/4 HP
- Suction Lift: 9 ft.
- Max Operating Pressure: 15 PSI
- Discharge Head: 38 ft.
- Max Current: 20 Amps
