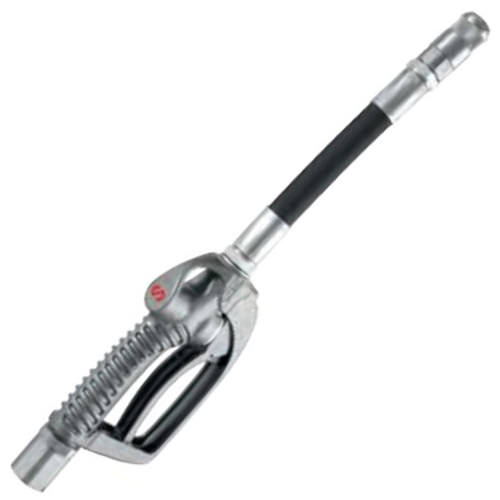

Samson 363056 Oil Control Handle
1 in. NPT (F) Inlet, 3/4 in. BSP (F) Outlet, 1450 psi, 24 GPM Max, Flexible Extension with Semiautomatic Non-drip Tip
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 363056 | 1 in. NPT (F) Inlet, 3/4 in. BSP (F) Outlet, 1450 psi, 24 GPM Max, Flexible Extension with Semiautomatic Non-drip Tip | $297.77 |
Samson CV11 Series Oil Control Handles
Samson control valves are used at end of hose assembly to dispense lubricants and antifreeze solutions.
Fluids Handled
- Synthetic and mineral based lubricants
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Antifreeze solutions
Durability and Performance
- Handles up to 11 Gallons Per Minute
- Extensively and rigorously field tested
- Reliable performance
- Aluminum body with light weight ergonomic design
- Soft grip valve for comfort
- Cam and piston valve design for minimum flow resistance
- Large inlet swivel and inlet filter with large screen surface
- Swivel and outlet covers
- Safety latch must be depressed before product can be dispensed
- Trigger can be locked open for dispensing large volumes
- Wide selection of outlets available
| Technical Data | |
|---|---|
| Maximum flow rate | 11 gal/min (40 1/min) |
| Maximum working pressure | 1,450 psi |
| Fluid inlet | 1/2" NPT (F) |
| Fluid outlet | 1/2" NPT (F) |
| Wetted parts | Aluminum / Zinc plated steel / TPU / Polyamide |
| Fluid compatibility | Lubricants, ATF, antifreeze (Glycol) and antifreeze water solutions |
| Weight | 1 lb (470 g) |
| Model# | Outlet Nozzle Type | Outlet Part No. |
|---|---|---|
| 363 100 | Oil valve with no outlet | - |
| 363 116 | Oil valve with 60" rigid outlet and quarter turn non drip tip | 369 231 |
| 363 114 | Oil valve with flexible outlet with 90° tube and quarter turn non-drip tip | 369 227 |
| 363 117 | Oil valve with Formable outlet and quarter turn non-drip | 369 233 |
| 363 118 | Oil valve with Formable outlet and quarter turn narrow non-drip (0 1/3") | 369 240 |
Non drip tips are manufactured in brass.
