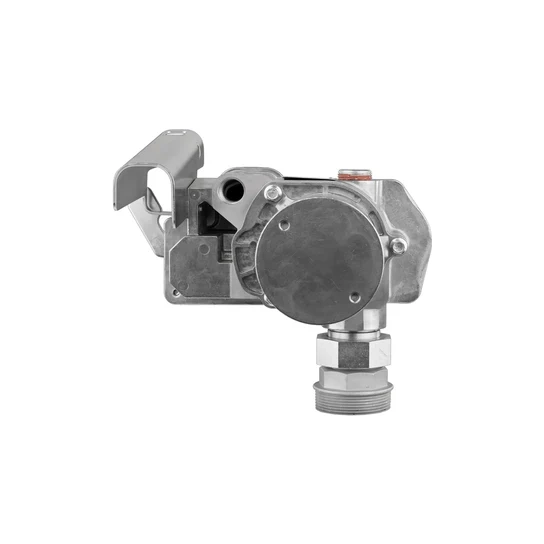

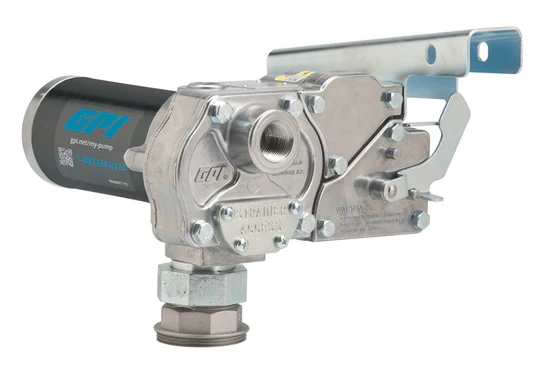

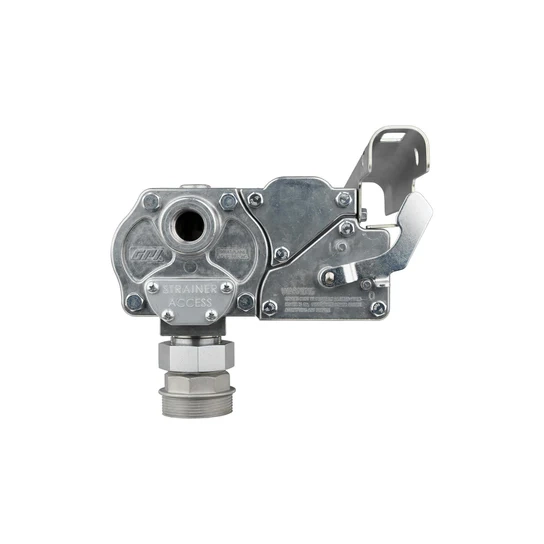

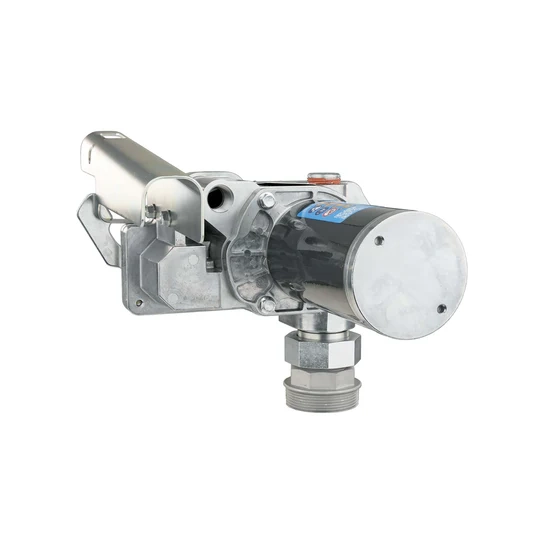

GPI 110000-71 Model: M-240S-PO 24V DC Fuel Transfer Pump
15 GPM, 1in. Inlet, 3/4 in. Outlet NPT. Pump Only
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 110000-71 | 15 GPM, 1in. Inlet, 3/4 in. Outlet NPT. Pump Only | $419.99 |
Contact UsGPI - 110000-71 - Model: M-240S-PO 24V DC Fuel Transfer Pump
The GPI M-240S Fuel Transfer Pump is the 24V DC pump of choice for agricultural, automotive, and construction applications with low viscosity petroleum fuels (gasoline, diesel fuel, and kerosene). Delivering flow rates up to 15 GPM (57 L/min) in two available pump models the M-240S Manual, and the M-240S Pump only. The M-240 Series is durable, manufactured from high-quality die-cast aluminum, easy to use, and engineered to last featuring a self-priming rotary gear design.
Owner's Manual- Rotary gear design reduces wear and high quality 24-VDC motor provide more operating hours for maximum value.
- Convenient spin collar for easy installation and versatile pump mounting.
- Circuit breaker motor protection extends motor life.
- Light-weight aluminum body provides corrosion resistance and reduces tank stress.
- Lockable nozzle holder protects your investment and deters fuel theft.
- Designed for permanent mounting on vented storage tanks.
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel ser¬vicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard.
Specifications:
- Max. Flow Rate: 15 GPM (57 L/min)
- Voltage Input: 24V (DC)
- Technology: Rotary Gear
- Amps Rated: 9 amps
- Duty Cycle: 30 min on/30 min off
- Power Cord: Power cord Not Included
- Max. Discharge Pressure: 15 PSI (1.03 bar)
- Operating Temperature: -20° F to 125° F (-29° C to 52° C)
- Suction Lift: Up to 5 ft. (1.5m) at Sea Level 70° F (21.1° C)
- Discharge Lift: Up to 15 ft. (4.5m) at Sea Level 70° F (21.1° C)
- Pump Housing Material: Powder Coated, Corrosion-Resistant Diecast Aluminum
- Wetted Materials: Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
- Mounting Type/Thread: Spin Collar, 2in. MNPT
- Suction Pipe: Not included
- Inlet: 1 in. FNPT
- Outlet: 3/4 in. FNPT
- Dispensing Hose: Not included
- Nozzle: Not included
- Nozzle Holder Type: Lockable
- Warranty: 2-yr pump warranty
- Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada
