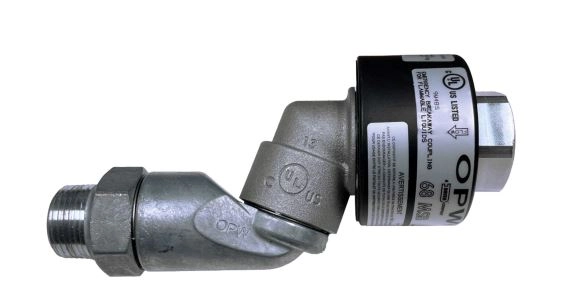

OPW - 68EZSB-7575 - 3/4 in. Aluminum Reconnectable Swivel Breakaway

OPW Swivel Breakaways are intended for easy installation at the nozzle inlet. The compact, lightweight designs incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily reconnectable breakaway on the opposite end.

Features

• New 68EZSB-7575 has enhanced swivel capability and is even easier to reconnect.
• UL and ULc-listed for use in gasoline, diesel and up to 10% ethanol blends.
• Pull Force – the 68EZSB will break away with a pull force of no more than 350 lbs.
• Easily Reconnected at Waist Height – after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 5 lbs for the 68EZSB.
• Protected Coupling and Poppet – the breakaway’s poppet and sealing surface are protected from impact during separation by a plastic sleeve
• Reduces Connections – the singleunit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
• 50 psi (3.45 bar) maximum pressure.
