AMT Pumps 02X11 Stainless Steel Submersible Pump
2 in. NPT Outlet, 115V AC, 1 HP
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 02X11 | 2 in. NPT Outlet, 115V AC, 1 HP | $1,142.04 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| 5811-99 | Submersible Drainage/Sump Pump - 1-1/2 in. NPT Outlet, Plastic, 115V AC, 1/2 HP | $298.22 | |
| C373-90 | 2 in. x 50 ft. Discharge Hose | $98.58 |

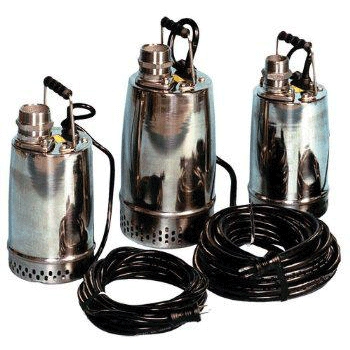

AMT Pumps - 02X11 - Stainless Steel Submersible Pump
Slim-design, light weight CSA listed submersibles feature top discharge as well as cast-iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury-free float switch is available. Float Switches: The mercury free liquid level control has a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet.
- 304 Stainless Steel Casing, Motor Housing, Shaft and Hardware
- Cast Iron Impeller, Top and Pump End
- Light Weight Slim Design
- Oil Lubricated Seals, Nitrile O-Rings
- Lower Seal Silicon-Carbide, Viton®
- Upper Seal Carbon Ceramic, Viton®
- Thermal Overload Protected
- 2 in. NPT Discharge
- 1 Horsepower
- HP: 1
- Type: Submersible Pump
- VAC/60 Hz: 115
- Material: Stainless Steel
- Seal: SIC & CAR/CER
- Full Load AMP: 10
- Ship WT: 50
- IPT Model No.: 2X11
| Model | Curve | Dis* | HP | A | B | C | D Cable Length | E Suction Strainer | W | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 2X11 | C | 2 | 1 | 13.7 | 3.8 | 1.6 | 50 ft. | 0.25 x 0.38 Slots on 0.50 Staggered Centers | 7.5 | 17.1 |
(*) Standard NPT (Male) pipe thread.
NOTE: All dimensions are in inches and have a tolerance of ±1/8".
NOTE: Electric supply for ALL motors must be within ±10% of nameplate voltage rating.
(§) Minimum Liquid Height

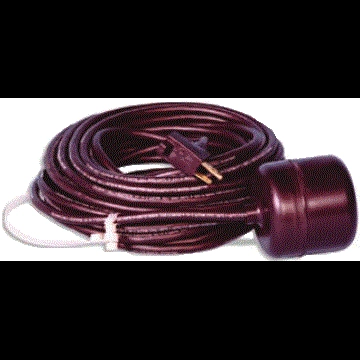

- Mercury-Free
- No Wiring
- Adjustable Clamp
- Corrosion Resistant
- Proven Reliability
- Omni Directional
- Variable Pumping Range
- Easily Installed
| Model | Description | Ship Wt. (Lbs.) |
|---|---|---|
 55-930 | 115V/15Amp 30 ft. 16 gauge cord | 4 |
55-950 | 115V/20Amp 50 ft. 14 gauge cord | 5 |
