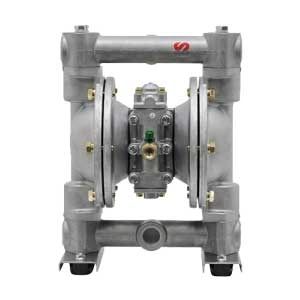

Samson 2836
Aluminum Air-Operated Diaphragm Pump
Ships from Manufacturer
Conventional air operated diaphragm pumps pump the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.
- Pump Pressure Ratio - 1:1
- Maximum Free Flow Rate - 40 gal/min (150 l/min)
- Minimum Air Pressure - 20 psi (1.5 bar)
- Maximum Air Pressure - 100 psi (7 bar)
- Max Size Solid Suspension - 3/16"
- Air Inlet - 3/8" NPTF
- Fluid Outlet - 1" NPTF
- Fluid Inlet - 1" NPTF
- Wetted Materials - Aluminum, NBR
|
|
