Manual Rewind Hose Reels for Fuel Dispensing, Spray Operations, Fire Protection
Three Year Manufacturer Warranty

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

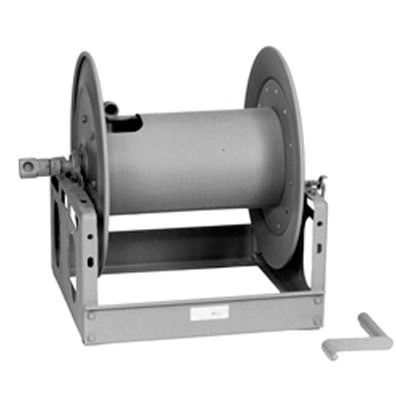

Hannay Reels 3000 Series Manual Rewind Hose Reels for Fuel Dispensing, Spray Operations, Fire Protection

1 in. NPT Inlet/Outlet, 50 to 200 ft. Hose Capacity, 2000 psi, 1 in. Hose I.D.

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
3016-25-26 1 in. NPT Inlet(F)/Outlet(F), without Hose, 50 ft. Hose Capacity, 2000 psi, 1 in. Hose I.D. $691.60
3020-25-26 1 in. NPT Inlet(F)/Outlet(F), without Hose, 100 ft. Hose Capacity, 2000 psi, 1 in. Hose I.D. $691.60
3024-25-26 1 in. NPT Inlet(F)/Outlet(F), without Hose, 150 ft. Hose Capacity, 2000 psi, 1 in. Hose I.D. $691.60
3028-25-26 1 in. NPT Inlet(F)/Outlet(F), without Hose, 200 ft. Hose Capacity, 2000 psi, 1 in. Hose I.D. $691.60
Contact Us
Hannay Reels - 3000 Series - Manual Rewind Hose Reels for Fuel Dispensing, Spray Operations, Fire Protection
3000
Manual Rewind Reels
To handle 3/4" or 1" I.D. hose

Fuel Dispensing / Spray Operations / Fire Protection

  • Economical manual rewind reels for long lengths of hose.
  • Choose disc rewind or removable direct crank rewind.
  • Supplied with spring-actuated pin lock.
  • Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads.
  • Standard outlet: 1" female NPT thread.
  • Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser are available.
  • Optional rollers may be purchased.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60° F to +250° F (-51° C to +121° C).
  • Consult factory for other pressures and temperatures.

Not all models available for purchase online. Please call 1-800-433-8831 for pricing and availability.

BASE MODEL
CAPACITY OF REEL
APPROX. WEIGHT
Hose/Cable Size
ft.
m
lb.
kg.
3016-25-26* 1 ID 50 15.2 85 38.6
3016-25-26 3/4 ID 100 30.5 85 38.6
3020-25-26* 1 ID 100 30.5 94 42.6
3020-25-26 3/4 ID 150 45.7 94 42.6
3024-25-26* 1 ID 150 45.7 103 46.7
3024-25-26 3/4 ID 250 76.2 103 46.7
3028-25-26* 1 ID 200 61.0 113 51.3
3028-25-26 3/4 ID 300 91.4 113 51.3

*Available for online purchase


BASE MODEL

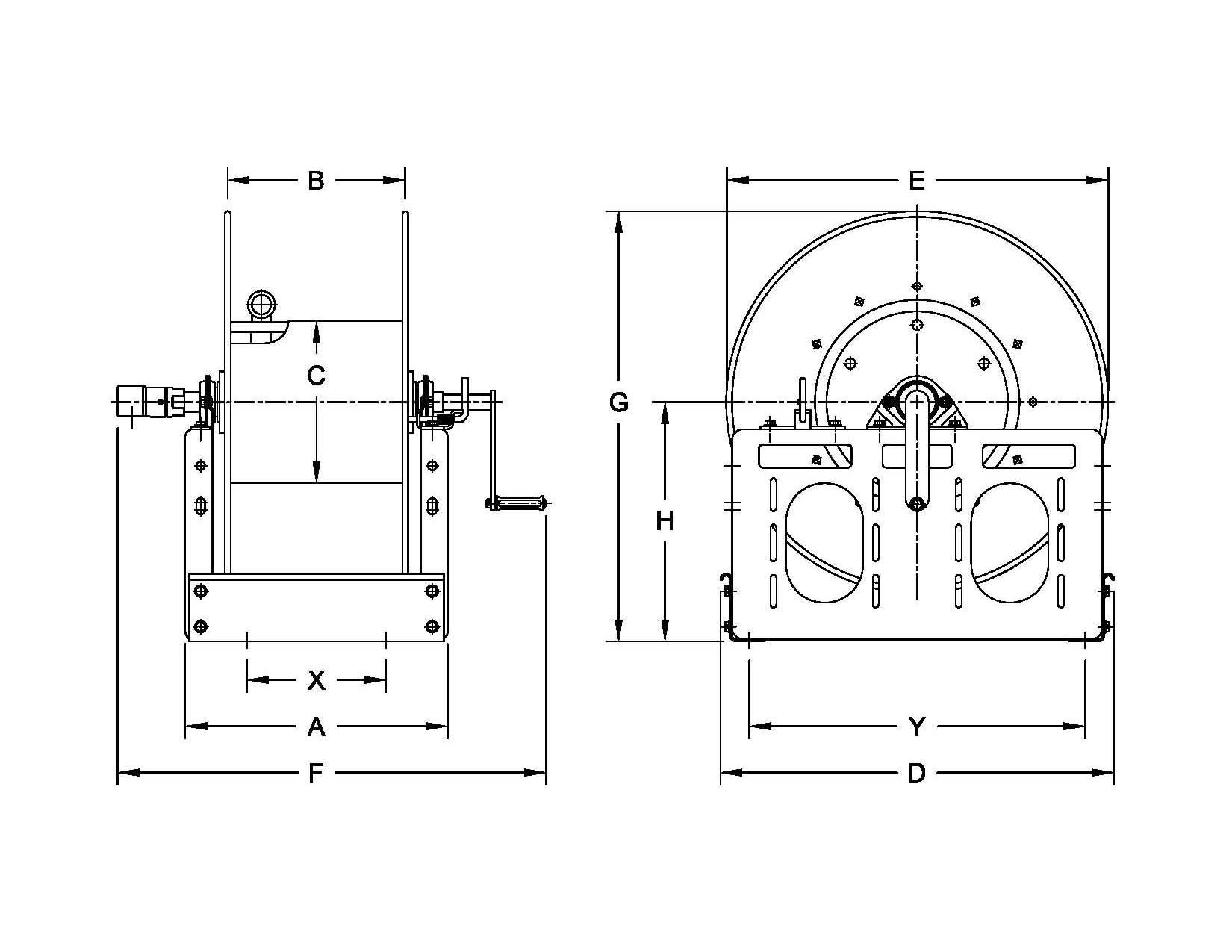

REEL DIMENSIONS
A
B
C
D
E
F
G
H
X
Y
3016-25-26 13 7.5 10.5 25.5 24.75 23.75 27.88 15.5 7.75 21.75
3020-25-26 17 11.5 10.5 25.5 24.75 27.75 27.88 15.5 9 21.75
3024-25-26 21 15.5 10.5 25.5 24.75 31.75 27.88 15.5 13 21.75
3028-25-26 25.5 20 10.5 25.5 24.75 36.25 27.88 15.5 17.5 21.75
