Solids Handling Pedestal Pump
Solids Handling Pedestal Pump
Solids Handling Pedestal Pump
One Year Manufacturer Warranty

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

AMT Pumps 3160-99 Solids Handling Pedestal Pump

2 in. Inlet/Outlet, Water Pump

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
3160-99 2 in. Inlet/Outlet, Water Pump $414.16

Add Optional Accessories

Model # Description Price Qty
055-362 2 in. Suction/Discharge Hose Kit $168.02
C221-90 2 in. x 20 ft. PVC Suction Hose Assembly $112.22
C373-90 2 in. x 50 ft. Discharge Hose $93.00
Contact Us
AMT Pumps - 3160-99 - Solids Handling Pedestal Pump
1 Year Warranty

AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Available in cast iron construction material. The units feature 3/8 in. to 2 in. solids handling construction and are fitted with a cast iron bearing housing, which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. Self-priming to 20 feet.

Stop! Required before ordering:

Unless specified above, all pumps are for water use only and are not to be used for any other purpose.

If you are selecting a pump that is designed for pumping products other than water, please check the chemical resistance chart to determine if your pump is fit for your purpose, application and that the pump and seals are compatible for your use.
Warranty is subject to the proper selection of material and seals of the product you are pumping.
Chemical Resistance Chart

  • Cast Iron Construction
  • Buna-N Check Valve and O-rings
  • 2 in. NPT Suction & Discharge Ports
  • Maximum Working Pressure 75 PSI
  • Maximum Temperature 180° F
  • Self-priming to 20 Ft.
  • 3/8 in. Diameter Solids Handling Capability
  • Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings
  • 3/4 in. Diameter CNC Machined Shaft
  • 1-3/8 in. x 3/16 in. x 3/32 in. Keyway

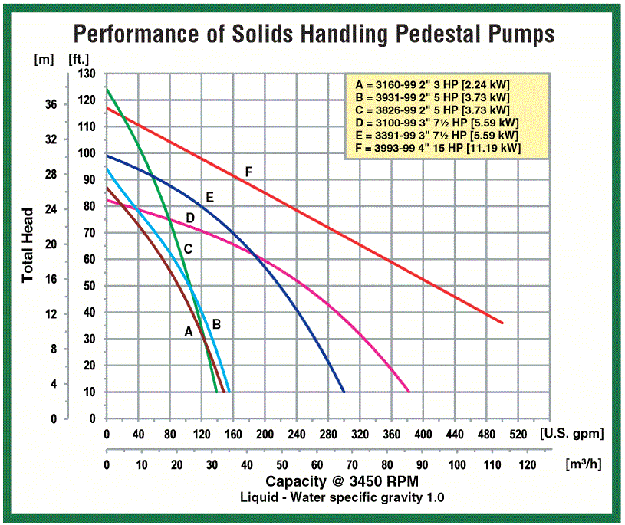

ModelCurveSuc*Dis*LWHKeywaySealHP Required @ 3600 RPMShip Wt. (Lbs.)
3160-99A2 in. Female2 in. Female15.18.08.93/16 in. x 1-3/8 in.Buna-N341

(*) Standard NPT pipe thread.
NOTE: Dimensions are in inches and have a tolerance of ±1/8 in.
