AMT Pumps 3S5XP, 3S5PC IPT Pedestal Pump
3 in. Trash, High Pressure or General Purpose, Alum./Cast Iron or All Cast Iron, 3/4 in. Keyed Shaft, Ped. Pumps
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 3S5XP | 3 in., High Pressure , Aluminum Impeller with Cast Iron Volute, 3/4 in. Keyed Shaft, EPDM/EPR Seals | $695.64 | |
| 3S5PC | 3 in. Trash, General Purpose, All Cast Iron, 3/4 in. Keyed Shaft | $753.30 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| 3SXV-300-VS | Viton O-Ring, Flapper & Gasket (No Seal) Installed | $251.10 |
AMT Pumps - 3S5XP, 3S5PC - IPT Pedestal Pump
Spec SheetPedestal drive units for flex-coupling to an electric motor are available in general purpose, high pressure and trash versions. All models are standard with threaded impeller.
- Cast Iron or Aluminum Construction
- General Purpose - Type G Only
- Cast Iron Impeller and Volute for Long Life
- EPDM/EPR Seals and O-Rings
- High Pressure - Type P Only
- Aluminum Impeller with Cast Iron Volute for High Efficiency
- EPDM/EPR Seals and O-Rings
- Trash - Type S Only
- Cast Iron Impeller & Volute for Resistance to Wear and Abrasion
- Silicon/Carbide/Viton Mechanical Seal and EPDM/EPR O-Rings

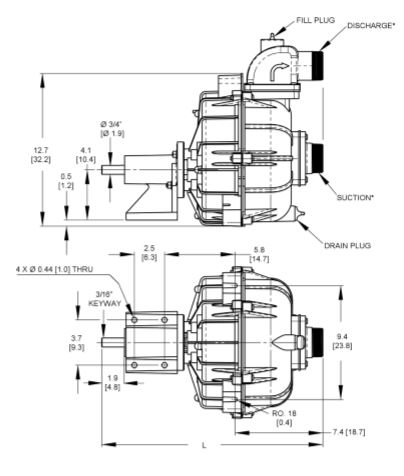

Dimensions
| Length | Width | Height |
|---|---|---|
| 18.3 in. | 12.5 in. | 16 in. |
Features & Specifications
10 HP TEFC 230 Volt - 394K-95 |
