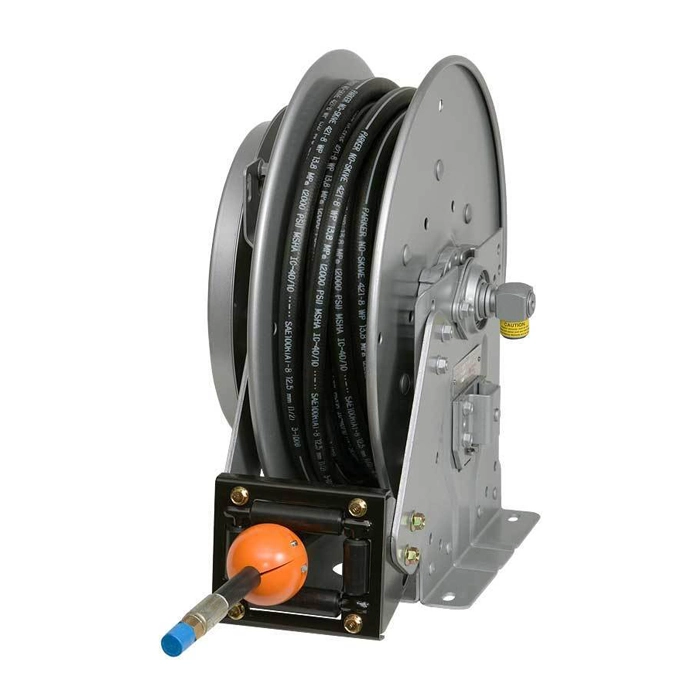

Hannay Reels 47-47 (N718-25-26-15.5G) Spring Rewind Hose Reel for Lubrication, Air, Water, Steam, Washdown
1/2 in. NPT Inlet(F)/Outlet(F), With 3/8 in. x 100' Flexteral AR-30 (300 PSI) Hose, HS-35 INST, 1/2 in. Hose I.D.
Roller Position GuideHannay Reels - 47-47 (N718-25-26-15.5G) - Spring Rewind Hose Reel for Lubrication, Air, Water, Steam, Washdown
Hannay N718-25-26-15.5G Spring Rewind
Handles 1/4 in. ID to 1/2 in. ID Hose
This model holds up to 100 ft. of 3/8 in. or 1/2 in. hose. Spring type G, 25 usable turns.
For: Lubrication, Air/Water, Assembly Operations, Washdown, Air Tools & General Industrial Applications
Features:
Standard N Series has a narrow frame and compact mounting base
Non sparking ratchet assembly
Declutching arbor to prevent damage from reverse winding
Standard inlet 90° balanced pressure swivel joint 1/2 in. female NPT threads
Standard outlet 1/2 in. female NPT threads
Standard Pressures to 3000 psi (207 bar) (available up to10,000 psi 690 bar)
Temperatures from -60° F to +250° F (-51° C to +121° C)
Consult factory for other pressures & temps
4-way roller assembly
Constant Tension is available - consult factory
