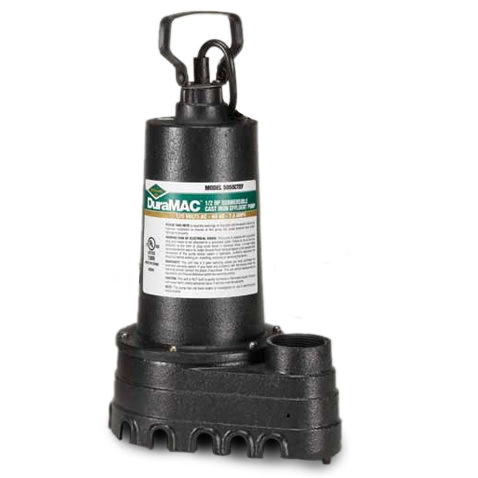

A.Y. McDonald 6191-115 Model: 5050CUEF Submersible Effluent Pump
1-1/2 in. Outlet, 70 GPM, 1/2 HP, 120 Volts, Cast Iron, 10 ft. Power Cord, No Float Switch
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 6191-115 | 1-1/2 in. Outlet, 70 GPM, 1/2 HP, 120 Volts, Cast Iron, 10 ft. Power Cord, No Float Switch | $436.15 |

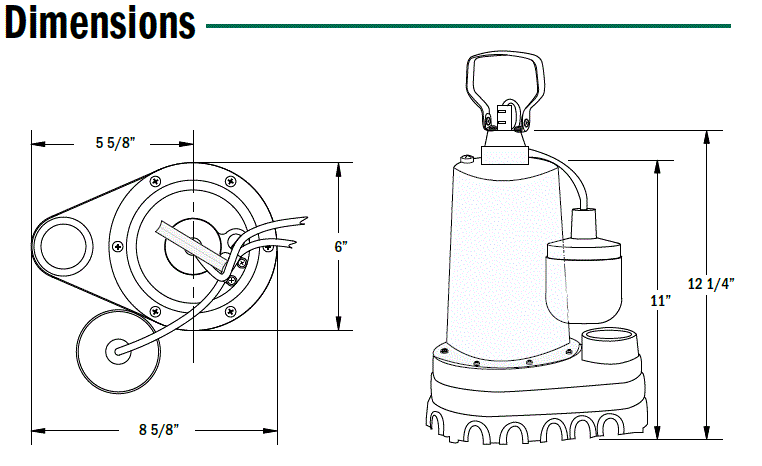

Submittal Data Drawings5050CUEF - Effluent Pump
With a rugged cast iron construction, this pump can handle up to 70 gallons per minute.
Features:
- Split Capacitor Motor - 1/2 HP continuous duty, thermal protected.
- Lifts water up to 25 ft. of vertical height.
- 10 ft. power cord.
- Without tethered float switch.
- Discharge - Handles 5/8 in. solids.
- Cast aluminum, non-clogging Vortex impeller.
- C-UL-US Listed.
- CSA Certified.
- 3 Year Limited Warranty.
Stop! Required before ordering:
Unless specified above, all pumps are for water use only and are not to be used for any other purpose.
If you are selecting a pump that is designed for pumping products other than water, please check the chemical resistance chart to determine if your pump is fit for your purpose, application and that the pump and seals are compatible for your use.
Warranty is subject to the proper selection of material and seals of the product you are pumping.
Chemical Resistance Chart
| Model | HP | Volts | Hz | Amps | Construction | Discharge Size | Cord Length | Solids Handling | RPM | Phase |
|---|---|---|---|---|---|---|---|---|---|---|
| 5050CUEF (No Switch) | 1/2 | 120 | 60 | 7.6 | Cast Iron | 1-1/2 in. | 10 ft. | 5/8 in. | 3450 | 1 |
| 5050CUEF25 (No Switch) | 1/2 | 120 | 60 | 7.6 | Cast Iron | 1-1/2 in. | 25 ft. | 5/8 in. | 3450 | 1 |
| 5050CTEF | 1/2 | 120 | 60 | 7.6 | Cast Iron | 1-1/2 in. | 10 ft. | 5/8 in. | 3450 | 1 |
| 5050CTEF25 | 1/2 | 120 | 60 | 7.6 | Cast Iron | 1-1/2 in. | 25 ft. | 5/8 in. | 3450 | 1 |
