AMT Pumps 5585-H6 & 5587-D6 Trash Pumps
6 in. NPT Inlet/Outlet, up to 3 in. Solids Handling, 24 HP Cast Aluminum Water Pump
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 5585-H6 | 6 in. NPT Inlet/Outlet, up to 3 in. Solids Handling, 24 HP Honda V-Twin OHV Engine, Cast Aluminum Water Pump with Trailer | $13,718.74 | |
| 5587-D6 | 6 in. NPT Inlet/Outlet, up to 3 in. Solids Handling, 24 HP Kohler Diesel, Cast Aluminum Water Pump with Trailer | $23,082.60 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| C394-90 | Suction Strainer - 6 in. NPT, 2-1/2 in. Openings | $100.44 | |
| C354-90 | 6 in. x 20 ft. PVC Suction Hose | $723.54 | |
| C353-90 | 6 in. x 25 ft. Discharge Hose | $422.22 | |
| C376-90 | 6 in. x 50 ft. Discharge Hose | $558.00 |
AMT Pumps - 5585-H6 & 5587-D6 - Trash Pumps
The AMT 6 in. Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed.
Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.
- Cast Aluminum Casing and Adapter
- Cast Iron Seal Plate, Volute and Manifold
- Stainless Steel Impeller
- Silicon Carbide Mechanical Seal and Buna-N O-Rings and Check Valve
- 6 in. NPT Port Size
- Self-Priming to 20 Feet
- Engine Options: Honda V-Twin Gasoline Engine or Kohler Diesel Engine
- Maximum Solids Handling 3 in.
- Patented Unique Slide Mechanism Permits Complete Service of Pump Without Removing Hoses or Removing Pump Components from Trailer
- Seal Wash Feature for Extended Seal Life
- Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability
- Silicon Carbide/Viton® Mechanical Seal and Buna-N O-rings and Check Valve
- Built-in Check Valve for Fast Priming to 20 Feet
- Maximum Solids Handling 3 in.
- 6 in. NPT Port Size
- Delivers up to 1,000 GPM
- Digital Tachometer/Hourmeter Installed
- Maximum Temperature 180° F
- 12 Volt DC Electric Start
- Available in Trailer Mounted
- D.O.T. Approved Trailer - Refer to Your State and Local Codes for Registration
- Easy Cleanout and Service Features with the Unique AMT Patented Slide Mechanism
- Steel Suction Strainer and Nipple Included
- Seal Wash Feature for Extended Seal Life

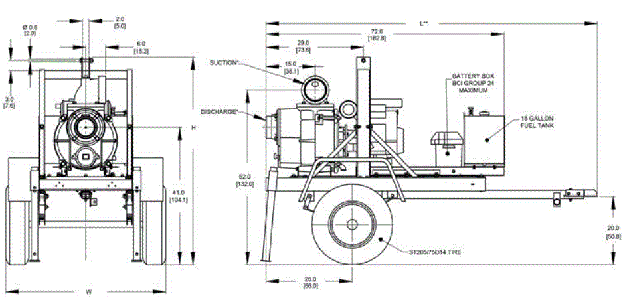

| Model | HP Class | Engine Type | Run Time (Hrs.) | Tank Size (Gal.) | Ship Wt. (Lbs.) | Suc* | Dis* | L | W | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 5585-H6 | 24 HP | Honda V-Twin OHV | 9 | 20 | 1,000 | 6 | 6 | 99.0 | 48.0 | 62.0 |
| 5587-D6 | 24 HP | Kohler Diesel | 12 | 20 | 1250 | 6 | 6 | 99.0 | 48.0 | 62.0 |
(*) Standard NPT pipe thread.
NOTE: Dimensions are in inches and have a tolerance of ±1/8 in.
