Pressure Regulator Valve

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

EBW 66430206 Pressure Regulator Valve

Female-Poppeted

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
66430206 Female-Poppeted $1,144.85
Contact Us

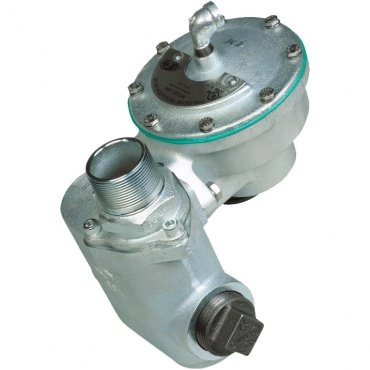

EBW - 66430206 - Pressure Regulator Valve
The EBW 664 pressure regulator valve is designed to be used in conjunction with suction type dispensers connected to an aboveground storage tank. The pressure regulator valve prevents fuel from flowing to the pumping unit and flowing out the vent tube of the self-contained dispenser when the pump is not activated. The pressure regulator valve is a vacuum actuated valve which will not allow product flow until the suction of the pumping unit opens the valve. The valve closes by means of an internal spring when pumping is complete.

  • Hydrostatic pressure adjusting mechanism with durable weather cap.
  • Built in thermal expansion pressure relief valve.
  • Shear section is standard, eliminating need for an additional shear valve.
  • NFPA 30.
  • API/RP 2000.
  • Body: cast iron.
  • Seals: fluorocarbon.
  • Filter: stainless steel.
  • Poppet: fluorocarbon.
