Morrison Brothers 691FS Series Flanged Ball Valve
2 in., 3 in., or 4 in., Stainless Steel
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 691FS-0200 1V | 2 in. | $397.14 | |
| 691FS-0300 1V | 3 in. | $754.65 | |
| 691FS-0400 1V | 4 in. | $1,127.15 |

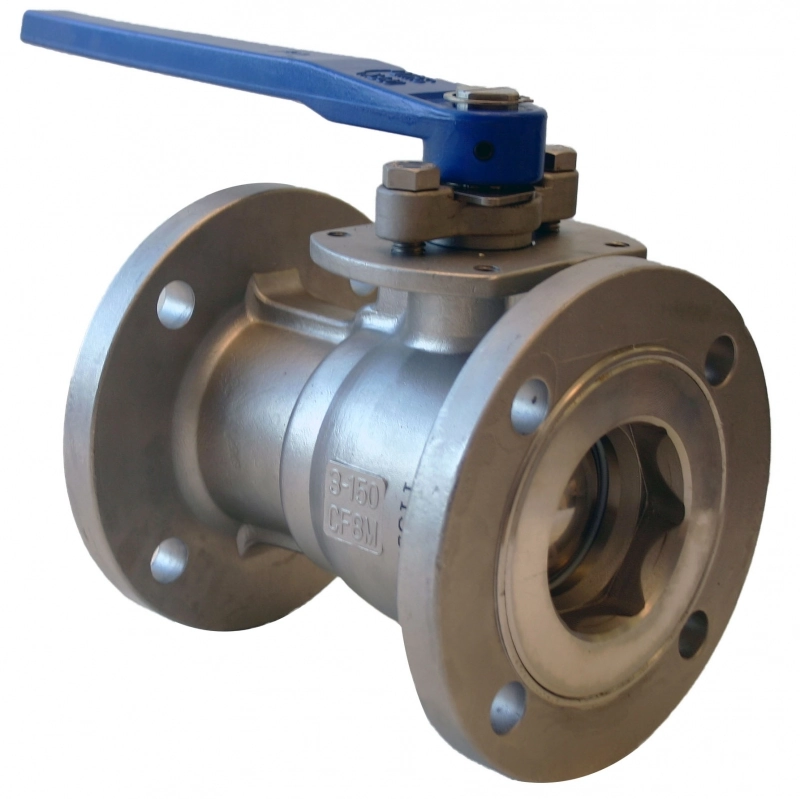

Morrison Bros. Co. 691FS Flanged Ball Valve
691A Series Spec SheetThe Morrison 691FS is a one piece regular port flanged ball valve.
Features:- Blow-out proof stem
- Adjustable stem packing
- 150# raise face flanges
- ANSI B16.5 B16.10 and B16.34 full compliance
- Test standard: API 598
- Quarter-turn operation
- Temperature rating -50°F (-45.5"C) to 475°F (246"C)
- 275psi maximum operating pressure
- Body, cap, and ball: CF8M stainless steel
- Seat: ME-PTFE (Molecularly Enhanced PTFE)
