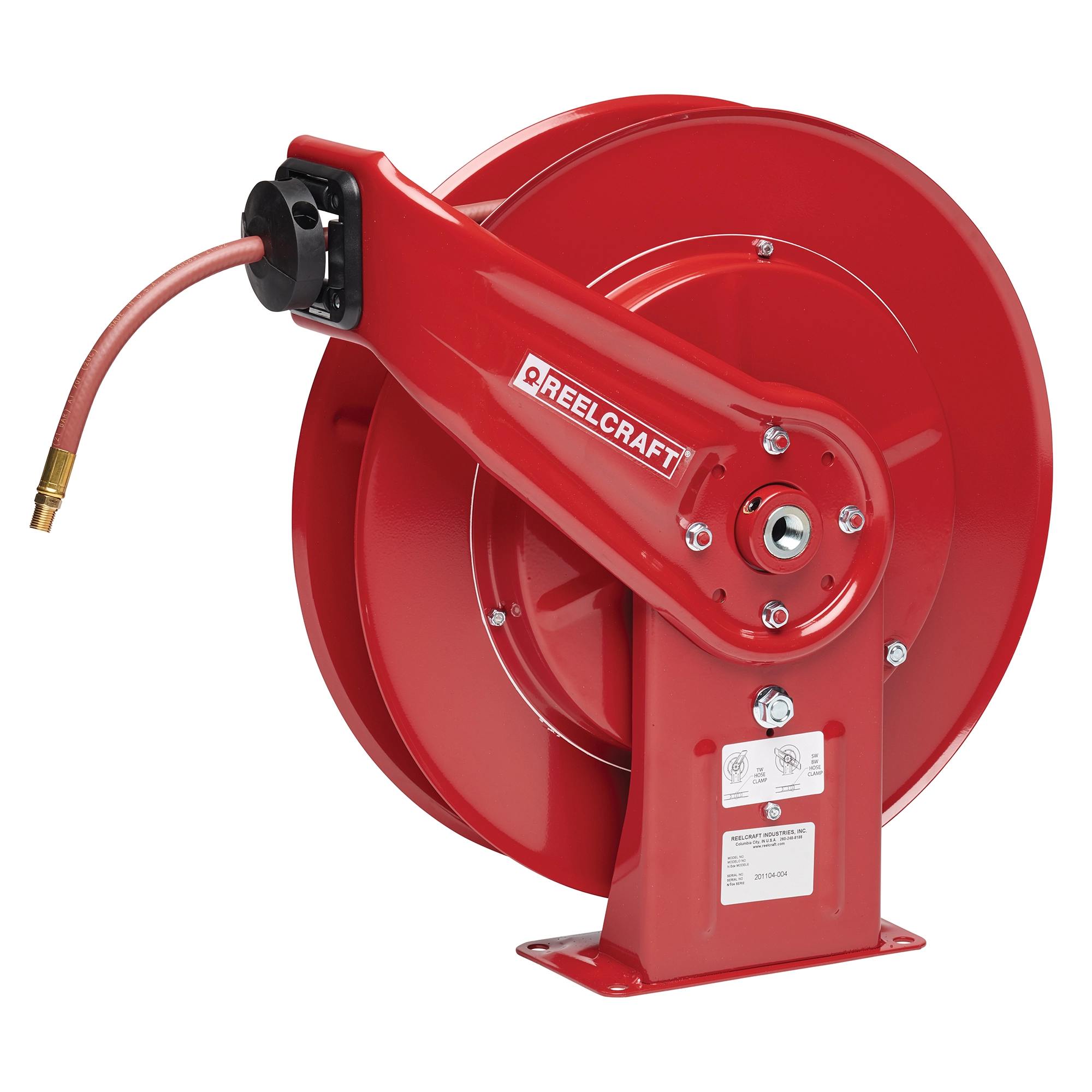

Reelcraft 7000-OMP Series Spring Rewind Heavy Duty Oil Hose Reel
1/2 in. NPT Inlet(F), 3/8 or 1/2 in. Outlet(F), with 50 ft. Hose, 2600 psi, 3/8 or 1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 7650 OMP | 1/2 in. NPT Inlet(F), 3/8 in. Outlet(F), with 50 ft. Hose, 2600 psi, 3/8 in. Hose I.D. | $671.72 | |
| 7600 OMP | 1/2 in. NPT Inlet(F), 3/8 in. Outlet(F), without Hose 50 ft. Hose Capacity, 3000 psi, 3/8 in. Hose I.D. | $503.14 | |
| 7800 OMP | 1/2 in. NPT Inlet(F), 1/2 in. Outlet(F), without Hose 50 ft. Hose Capacity, 3250 psi, 1/2 in. Hose I.D. | $451.27 |
Reelcraft - 7000-OMP Series - Spring Rewind Heavy Duty Oil Hose Reel
Catalog PageReelcraft 7000 OMP Series Reels
Reelcraft's 7000 Series heavy duty reels are robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to 3 positions.
- Reinforced Steel - The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight.
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
- Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
Reel Specifications
| Part Number | 7650 OMP |
|---|---|
| Weight (lbs) | 55 |
| Hose I.D. (in) | 3/8" |
| Hose O.D. (in) | 0.690" |
| Hose Length (ft) | 50 |
| Pressure (psi) | 2600 |
| Reel Inlet (in) | 1/2" NPT(F) |
| Hose Outlet (in) | 3/8" NPT(F) |
Fluid Path Materials
| Seal Type | Buna N |
| Swivel Material | Brass, Copper |
| Shaft Material | Steel |
Dimensions
| A | B | C | D | E |
|---|---|---|---|---|
| 20.25 in. | 19.75 in. | 7.8125 in. | 3.875 in. | 7 in. |
