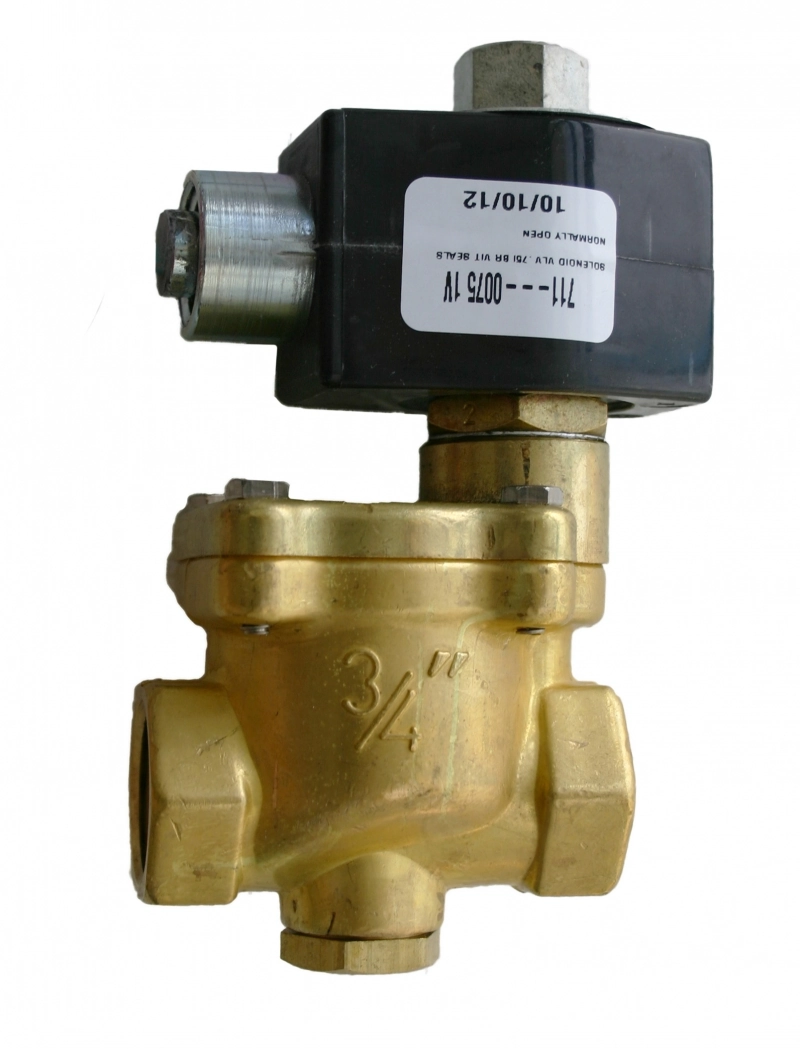

Morrison Brothers 711 Series Solenoid Valve

.75 in. - 3 in., Brass, Normally Open

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
711---0075 1V .75 in., Brass (FKM), Normally Open, 120/60V AC Coil $532.99
711---0100 1V 1 in., Brass (FKM), Normally Open, 120/60V AC Coil $605.67
711---0150 1V 1.5 in., Brass (FKM), Normally Open, 120/60V AC Coil $885.86
711---0200 1V 2 in., Brass (FKM), Normally Open, 120/60V AC Coil $1,135.38
711---0300 1V 3in., Brass (FKM), Normally Open, 120/60V AC Coil $3,585.54
Contact Us
Morrison Bros. Co. 711 Series Solenoid Valve - Normally Open
Manuals and Information:
711 Series Spec Sheet

The 711 solenoid valve is a high flow pilot operated piston valve that is "normally open." This general purpose valve is for applications such as pressure systems, machine tools, water processing, and steam applications. The valve closes upon the receipt of an electronic signal.

Features:
  • 7.5 PSI pressure differential required to keep the valve open
  • Explosion and weather proof coil and housing
  • 120V/60HZ standard; several optional coil voltages available
  • Must be installed in a horizontal pipeline with the coil in the upright and vertical position
  • Recommended for use with liquids having a maximum viscosity of 60 centistokes
  • A strainer with a 100 mesh screen is recommended at the valve inlet
Construction:
  • Body: Forged brass
  • Cover: Forged brass
  • Seals: FKM
Certifications:
  • UL Listed
