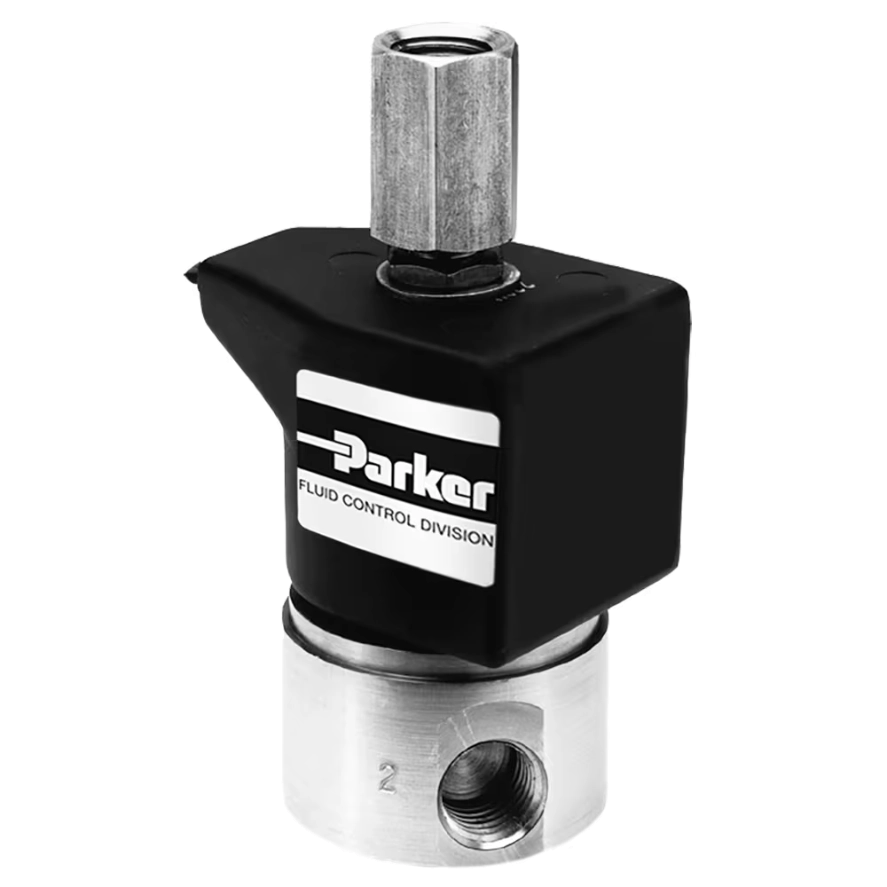

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom
Parker 71315SN2KNM5N0H111P3 3-Way Solenoid Valve
1/4 in., 110/50V-120/60V, NBR Seals, Stainless
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 71315SN2KNM5N0H111P3 | 1/4 in., 110/50V-120/60V, NBR Seals, Stainless | $209.72 |
Parker - 71315SN2KNM5N0H111P3 - 3-Way Solenoid Valve
Parker's 3-Way Normally Closed, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
Features/ Benefits:
- High Quality Standards of Skinner and Gold Ring Brand
- Modular Design
- Long Life
- Tight Shutoff
Applications:
- Single acting spring return cylinder control
- Selection or diversion of process media
- HVAC damper control
- Instrumentation Equipment
- Pneumatic positioning
- Automatic dispensing equipment
- Gas sampling
- Small compressors
- Water treatment
- Air dryers
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Textile and Dry Cleaning Equipment
- Irrigation Equipment
| Performance Characteristics | |
|---|---|
| Seal Material | NBR |
| Body Material | Stainless |
| Actuation Type | Direct Acting |
| Function | Normally Closed |
| Minimum Fluid Temperature | 0 °F |
| Port Type | NPT |
| Valve Type | 3-Way |
| Media | General Purpose for Air, Liquids and Gases |
| Maximum Fluid Temperature | 185 °F |
| Coil Specifications Met | NEMA 7, 9 |
| Port Size | 1/4 inch |
| Power Consumption | 10 Watt (AC) W |
| Maximum Pressure Differential | 125 psi (AC) psi |
| Minimum Pressure Differential | 0 psi |
| Input Voltage | 110/50-120/60 |
| Voltage | 110/50-120/60 |
| Main Flow Coefficient | 0.17 Cv |
| Coil Type | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
| Exhaust Flow Coefficient | 0.17 Cv |
| Exhaust Orifice Size | 3/32 inch |
| Product Series | 7000 Series |
| Number of Ports | 3.0 |
| Additional Options | Manual Override w/Exhaust Adapter Nut |
| Flow Factor Main (Cv) | 0.17 |
| Orifice Main (inch) | 3/32 |
| Mechanical Option | Manual Override w/Exhaust Adapter Nut |
| Main Orifice Size | 3/32 inch |
