Diaphragm Pump Saver Valve

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

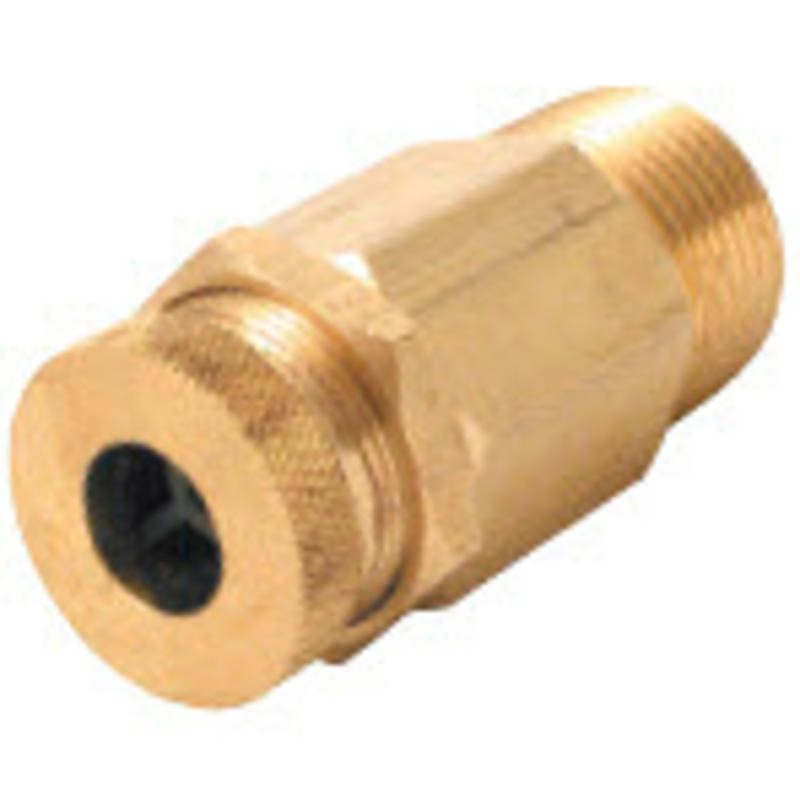

Udor 950000 Diaphragm Pump Saver Valve

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
950000 Diaphragm Pump Saver Valve $75.31
Contact Us
Udor - 950000 - Diaphragm Pump Saver Valve

Diaphragm Pump Saver Valve is mounted on a T-fitting between the inlet fitting on the pump & the filter or ball valve on the intake line, to relieve excess intake vacuum due to a closed ball valve or plugged filter, preventing premature failure of the diaphragms. Brass body, stainless steel spring, polypropylene piston & Viton o-ring.

Inlet Port 3/4 in. male NPT
Vacuum Preset - 8-10 in. VAC
Adjustment Range - 1-12 in. VAC
