CNI Manufacturing 990 Swivel Head Hose Retriever

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
9906-1 5/8 in. Dia. x 10-12 ft. Single Product Hose $399.70
9906-2 5/8 in. Dia. x 13-14 ft. Single Product Hose $399.70
9907-1 3/4 in. Dia. x 10-12 ft. Single Product Hose $402.95
9907-2 3/4 in. Dia. x 13-14 ft. Single Product Hose $402.95
9901-1 1 in. Dia. x 12-14 ft. Single Product Hose $364.29
Contact Us
CNI Manufacturing - 990 - Swivel Head Hose Retriever

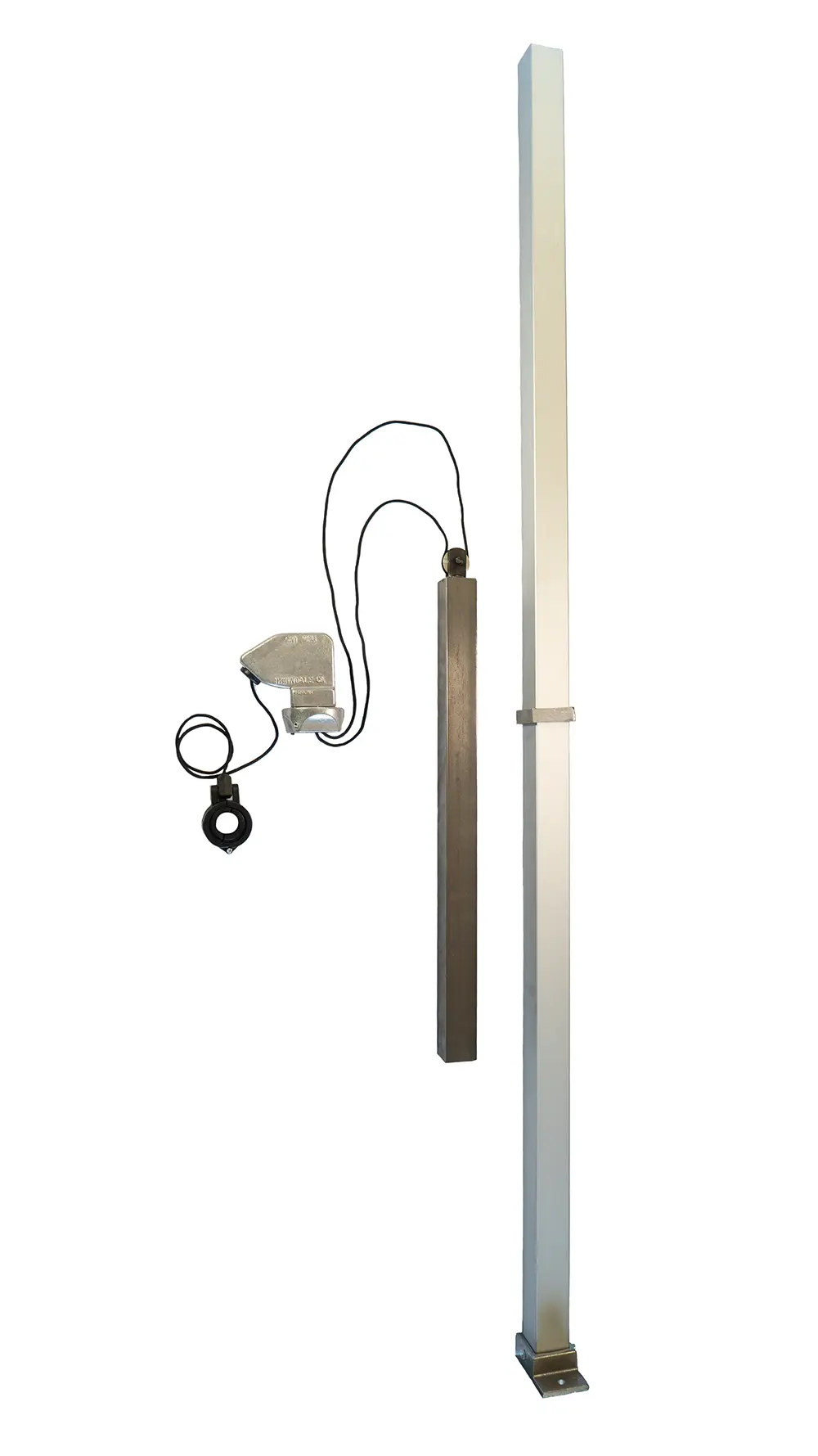

    Specifications:

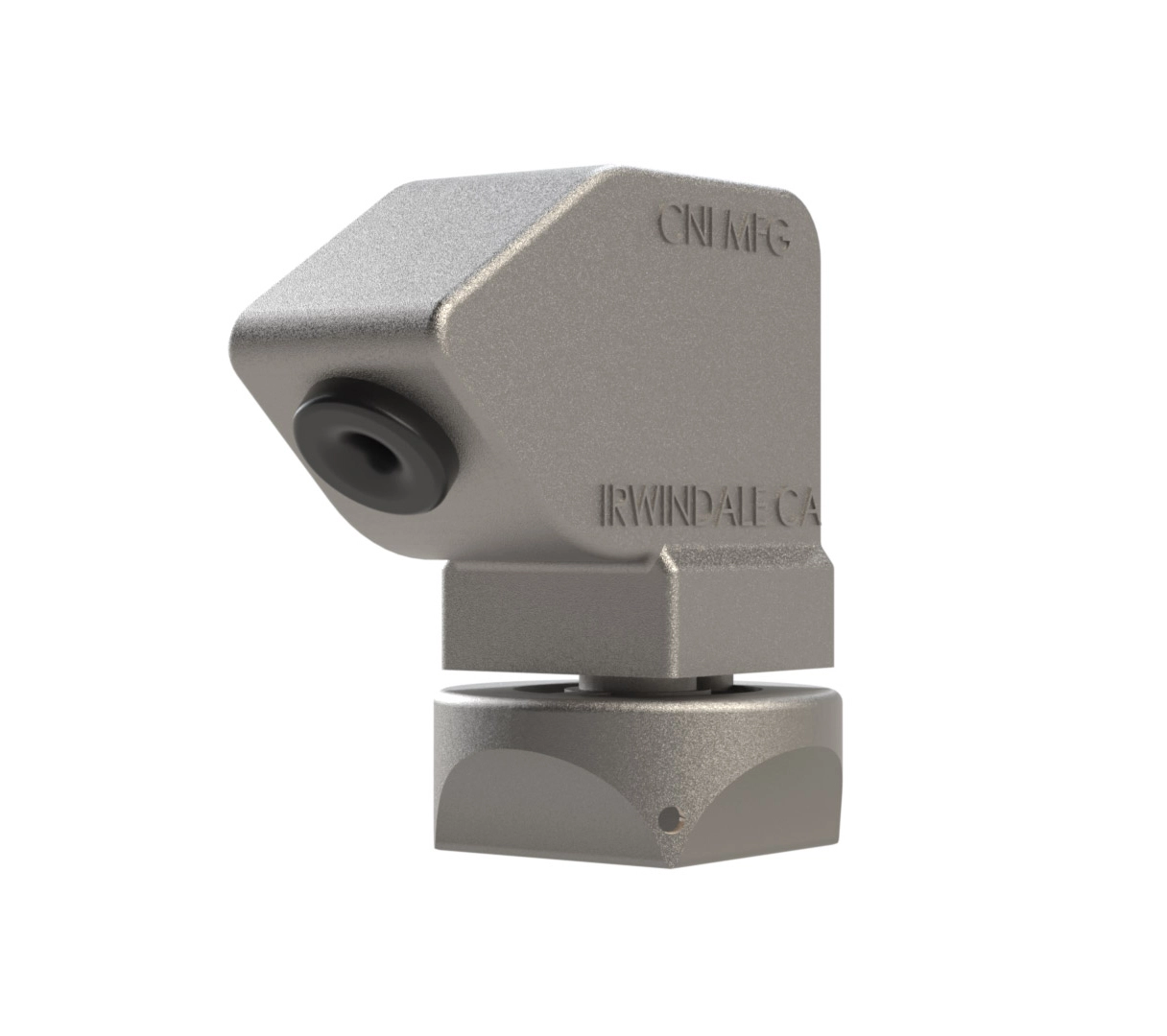

  • Head: Ball burnished aluminum and self lubricating bronze finish.
  • Swivel Base: Made to fit 2 in. square tube.
  • Post: 6 ft. 2 in. anodized aluminum square tube.
  • Retractor Rope: 3/16 in. Nylon.
  • Counter Weight: Steel, with self lubricating bronze bushings on pulleys.
  • Mounting Hardware: Aluminum.
  • Adjustable Bracket: Ball burnished aluminum, flush mount.
  • Base Bracket: Ball burnished aluminum, bolted to post.

    Features
  • Swivel head rotates 320 degrees to follow the operator.
  • Retractor rope extracts at a 45 degree angle to minimize friction pull and wear on the rope.
  • Retractor rope extracts through a replaceable eyelet.
  • Hose retriever head is large enough to accept two. 2 in. numbers for pump identifications.
  • The unit can be ordered with welded spacers or adjustable bracket.
  • Pulleys are cut extra deep, so rope will not jump off.
  • Dual hose clamp or single coaxial.
  • 18 month limited warranty.
Model #Description
9901-11 in. x 12-14 ft. Single Product Hose
9906-15/8 in. x 10-12 ft. Single Product Hose
9906-25/8 in. x 13-14 ft. Single Product Hose
9907-13/4 in. x 10-12 ft. Single Product Hose
9907-23/4 in. x 13-14 ft. Single Product Hose
