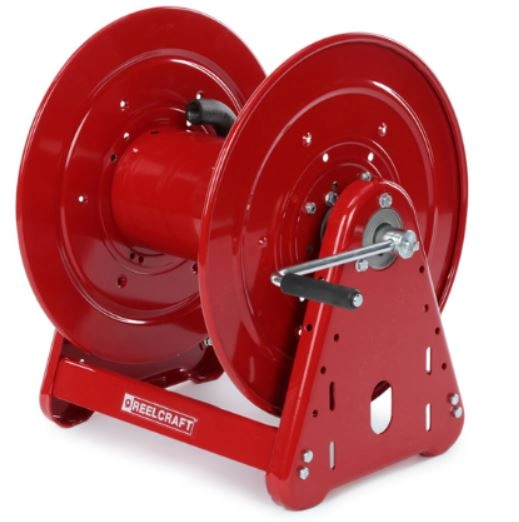

Reelcraft CA32112 L Heavy Duty Manual Rewind Hose Reel
1/2 in. NPT Inlet(F)/Outlet(F), without Hose, 200 ft. Hose Capacity, 1000 psi, 1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| CA32112 L | 1/2 in. NPT Inlet(F)/Outlet(F), without Hose, 200 ft. Hose Capacity, 1000 psi, 1/2 in. Hose I.D. | $338.03 |
Catalog PageReelcraft - CA32112 L - Heavy Duty Manual Rewind Hose Reel
Reelcraft's Series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000's vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
- Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel.
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
- Easy to add tension - The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
Reel Specifications
| Part Number | CA32112 L |
|---|---|
| Series | 30000 |
| Weight (lbs) | 46 |
| Hose I.D. (in) | 1/2 inch |
| Hose O.D. (in) | 0.75 |
| Hose Length (ft) | 200 |
| Pressure (psi) | 1000 |
| Hose End (in) | |
| Inlet (in) | 1/2 NPT(F) |
| Reel Outlet (in) | 1/2 NPT(F) |
| Hose Included | No |
| Max Temperature (°F) | 250 |
Fluid Path Materials
| Seal Type | Buna N |
| Swivel Material | Steel |
| Shaft Material | Ductile Iron |
| Gooseneck Material | Ductile Iron |
Dimensions
| Model# | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| CA32112 L | 20.25 in. | 17.75 in. | 9 in. | 15.75 in. | 25.75 in. | 12 in. |
