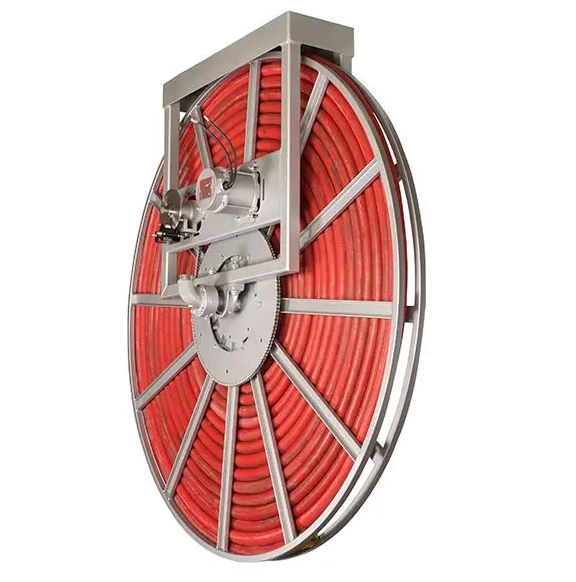

Hannay Reels EPIV5218-56-58-24 Single Wrap 12/24V Electronic Rewind (1/2 HP) Petroleum Hose Reel
1-1/2 in. Inlet/Outlet, without Hose, 75ft. Hose Capacity, 600 psi., 1-1/2 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| EPIV5218-56-58-24 | 1-1/2 in. Inlet/Outlet, without Hose, 75ft. Hose Capacity, 600 psi., 1-1/2 in. Hose I.D. | $3,908.45 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| IV5000-AUXRWND | Auxiliary Crank Rewind on Powered Reel | $159.25 | |
| IV5000-CLUTCH | Clutch added to included Reduction Unit | $536.90 | |
| IV5000-ABRAKE | Air Brake added to included Reduction Unit | $200.20 | |
| IV5000-FWFRAME | Full Width Frame | $227.50 |
Hannay Reels - EPIV5218-56-58-24 - Single Wrap 12/24V Electronic Rewind (1/2 HP) Petroleum Hose Reel
- Effortless and fast rewinding, wrapping, and guiding of hose.
- Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
- Auxiliary crank rewind optional.
- 12v rewind, comet brake standard.
- Air brake optional.
- Standard with a reduction unit only. Electric clutch units optional.
- 5100 series: 90° ball bearing swivel joint, 1-1/2" female NPT threads, 2" Victaulic groove, flanged riser with 1-1/2" female NPT threads.
- 5200 series: 90° ball bearing swivel joint, 2" Victaulic groove, flanged riser with 2" female NPT threads.
- Inlet and hub assembly are aluminum.
- Joint and riser ductile iron for petroleum fuel.
- Standard pressures to 600 psi (41 bar).
- Standard fluid temperatures from -40° F to +400 °F (-40° C to +204° C).
- Consult factory for other pressures and temperatures.
