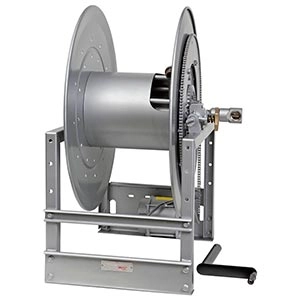

Hannay Reels ESF24-23-24 Electronic Rewind (1/3HP) Hose Reel with Inboard Mounted Motor for Booster Hose
1 in. Inlet/Outlet, 125ft. Hose Capacity, 1000 psi, 1 in. Hose I.D.
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| ESF24-23-24 | 1 in. Inlet/Outlet, 125ft. Hose Capacity, 1000 psi, 1 in. Hose I.D. | $1,501.50 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| F-RISER | 1 in. Flanged Riser | $40.95 | |
| F-FLOWHUB | Two-way Flow Hub | $22.75 | |
| F-VERT | Vertical rewind (instead of horizontal) | $68.25 | |
| F-30DEG | 30° rewind (instead of horizontal) | $32.76 | |
| F-EH820 | EH-820 Brake Installed | $200.20 | |
| F-PINLOCK | Positive Pinlock Installed | $34.58 | |
| F-SSTDISCS | Polished SST Discs & Powder-silver Sprocket | $409.50 | |
| F-FH3 | Install FH-3 Roller Assy. (High or Low) | $227.50 | |
| F-FH3-2 | Install (2) FH-3 Roller Assemblies (High or Low) | $455.00 |
Hannay Reels - ESF24-23-24 - Electronic Rewind (1/3HP) Hose Reel with Inboard Mounted Motor for Booster Hose
- Inboard motor location high profile.
- Standard booster hose reel is steel, painted graphite. Aluminum or stainless steel construction is also available.
- Super Booster (SB) aluminum construction reels weigh up to 30% less than standard booster reels.
- Choose chain and sprocket rewind powered by either electric or compressed air motor
- Pinion brake standard.
- Standard inlet: 1" 90° ball bearing swivel joint with 1" female NPT threads.
- Standard outlet: 1" male NST threads (1.375" x 8 threads per inch).
- Consult factory for other sizes and/or threads.
- Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel).
- Rollers and roller mounting brackets are accessory items. Specify roller position.
- Standard pressures to 1000 psi (69 bar).
- Standard fluid temperatures from -15° F to +250 °F (-26° C to +121° C).
- Consult factory for other pressures and temperatures.
- CAUTION: When using Niedner|AltrA hose, a special riser and/or larger drum diameter is required.
IMPORTANT: Hose Reel Component Locations
All Hannay Hose Reels ship with standard component locations (components meaning inlet, outlet riser and rewind mechanism). Other options available upon request. Please note in checkout comments or email/call us to confirm alternative component locations. To see component location options Click Here.
