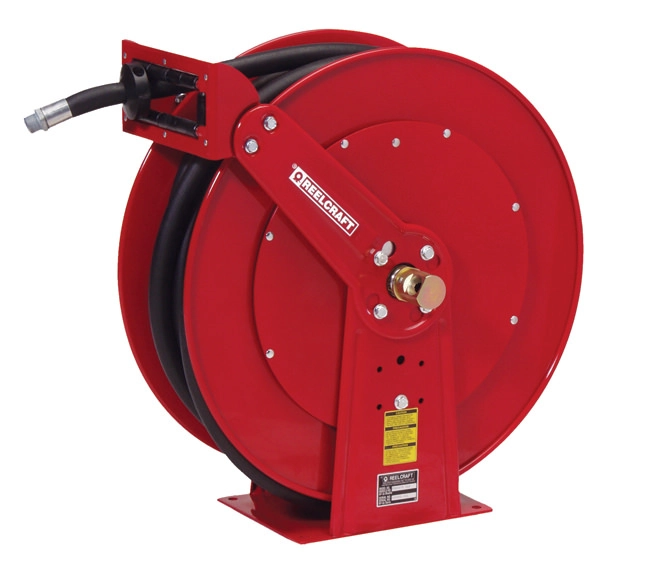

Reelcraft F83000-OLP Series Spring Rewind Fuel Hose Reels
3/4 in. Inlet/Outlet, 50 or 75 ft. Hose Capacity, 50 to 500 psi, 3/4 in. Hose I.D., Double Arm
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| F83000 OLP | 3/4 in. NPT Inlet(F)/Outlet(F), without Hose, 50 ft. Hose Capacity, 500 psi, 3/4 in. Hose I.D. | $703.70 | |
| F83050 OLP | 3/4 in. NPT Inlet(F)/Outlet(F), with 50 ft. (50 psi) Hose, 250 psi (Reel), 3/4 in. Hose I.D. | $1,049.50 | |
| FD83000 OLP | 3/4 in. NPT Inlet(F)/Outlet(F), without Hose, 75 ft. Hose Capacity, 500 psi, 3/4 in. Hose I.D. | $864.50 | |
| FD83075 OLP | 3/4 in. NPT Inlet(F)/Outlet(F), with 75 ft. (50 psi) Hose, 250 psi (Reel), 3/4 in. Hose I.D. | $1,324.41 |
Not for use with jet fuel or high octane aviation fuel.
Catalog PageSeries 80000 Service ManualSeries D80000 Service ManualReelcraft Warranty InformationReelcraft F83000-OLP Series Fuel Hose Reels
Reelcraft's spring retractable fuel delivery reels, equipped with Viton seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD80000 reels are supplied with our ball-bearing style swivel.
- Robust Latching mechanism - Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| F83000-OLP | 25.375 in. | 24 in. | 6 in. | 10 in. | 10.5 in. | 8.125 in. |
| F83050-OLP | 25.375 in. | 24 in. | 6 in. | 10 in. | 10.5 in. | 8.125 in. |
| FD83000-OLP | 25.375 in. | 24 in. | 7.875 in. | 10.5 in. | 13 in. | 10.375 in. |
| FD83075-OLP | 25.375 in. | 24 in. | 7.875 in. | 10.5 in. | 13 in. | 10.375 in. |
- Industrial
- Agriculture
- Automotive service centers
- Farm & ranch
- Mining (above ground)
- Service trucks
- Fleet maintenance facilities
- Fluid transfer
- Aircraft maintenance
- Fuel transfer
| Model# | Hose Length | Inlet (F)NPTF | Outlet (M)NPTF | Hose I.D. | Hose O.D. | Pressure | Weight |
|---|---|---|---|---|---|---|---|
| F83000-OLP | No Hose (holds up to 50 ft.) |
3/4 in. | 3/4 in. | N/A | N/A | 500 psi | 74 lb 34 kg |
| F83050-OLP | 50 ft. 15 m |
3/4 in. | 3/4 in. | 3/4 in. 19 mm |
1.188 in. 30 mm |
50 psi | 89 lb 40 kg |
| FD83000-OLP | No Hose (holds up to 75 ft.) |
3/4 in. | 3/4 in. | N/A | N/A | 500 psi | 82 lb 37 kg |
| FD83075-OLP | 75 ft. 23 m |
3/4 in. | 3/4 in. | 3/4 in. 19 mm |
1.188 in. 30 mm |
50 psi | 115 lb 52 kg |
Guide Arm Position
