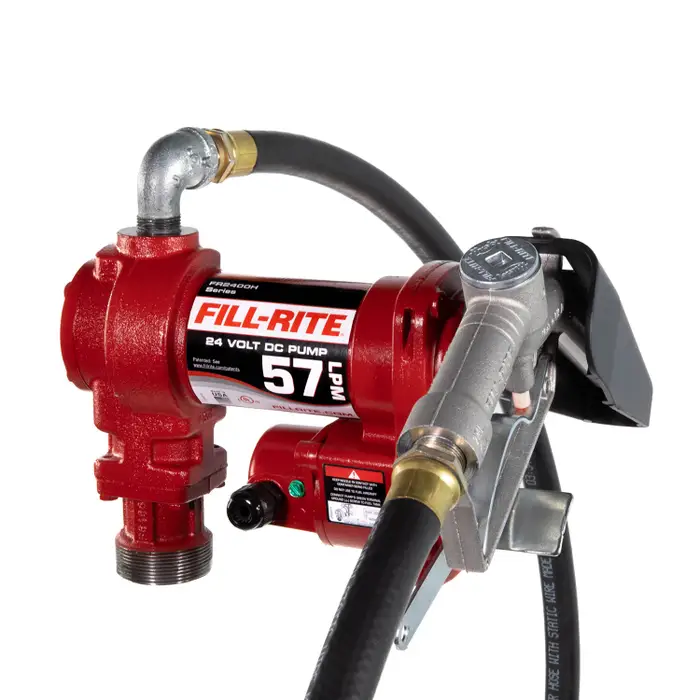

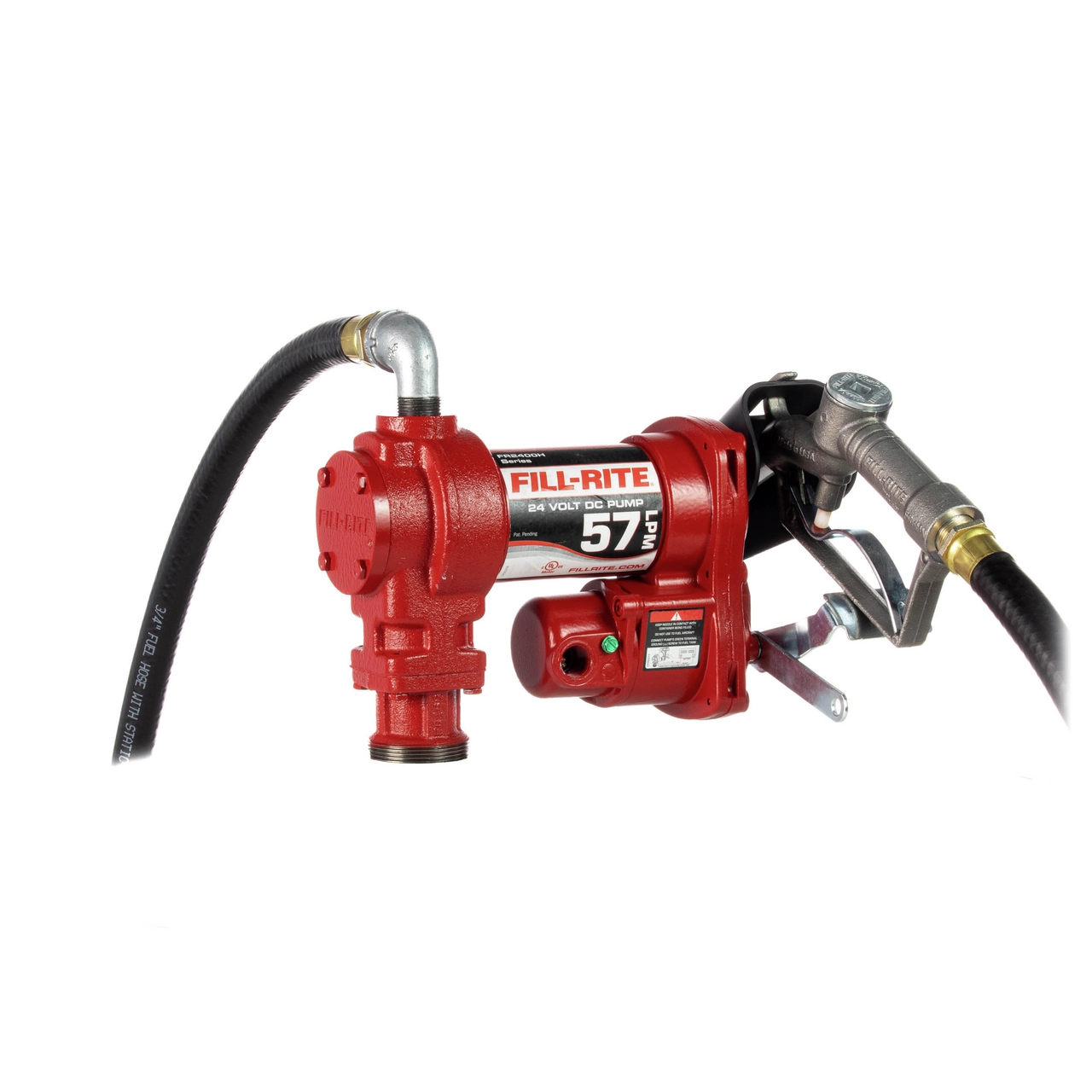

Fill-Rite FR2410H 24 Volt DC Fuel Transfer Pump
15 GPM, With 12 ft. Hose and Manual Nozzle
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| FR2410H | 15 GPM, With 12 ft. Hose and Manual Nozzle | $519.99 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| T-3030 | 30-Micron Particulate Transfer Pump Filter - Recommended for Diesel Fuel, Compatible w/ Unleaded Gasoline | $8.21 | |
| N3-3G | 3/4 in. NPT x 3 in. Galvanized Nipple Pipe | $3.34 | |
| T-45 | 3/4 in. 45 degree Swivel for Diesel | $28.60 | |
| T-GL34 | Aluminum Filter Head Adapter, 3/4 in. NPT, 1 in. - 12 UNF | $20.58 |
Fill-Rite - FR2410H - 24 Volt DC Fuel Transfer Pump
The Fill-Rite FR2410H model with NPT fittings is a 24V DC heavy-duty, cast-iron, rotary vane fuel transfer pump that is capable of generating up to 15GPM. It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The FR2410H model is available with a 3/4" manual nozzle, 12' fuel hose, 20" - 34" steel telescoping suction pipe, as well as other accessories. Made in the USA with a UL/cUL listed motor and limited lifetime warranty, this product is ideal for agriculture, construction, as well as any industry requiring mobile fuel transfer. Additional Accessories: 3/4" x 12' Hose, Manual Nozzle, 5' Ground Wire, 18' battery cable, 20" - 34" Steel Telescoping Suction Pipe.
Spec Sheet- Adjustable electric junction box rotates 180°
- Reliable, heavy-duty power switch withstands heavy abuse in rugged environments
- Focused weight reduction while preserving expected heavy-duty performance
- Thermally protected motor prevents overheating to maximize motor life
- Premium paint shield for exemplary corrosion resistance
- UL/cUL listed motor
Specifications:
- Fluid Handling: Biodiesel up to B20, Diesel, Gasoline, Mineral Spirits
- cULus Meter cULus Motor Certifcation
- 1 in. Inlet, 0.75 in. Outlet, Female Connection, NPT
- 20x20 Micron Strainer Mesh
- 15 GPM
- 240 Watts
- 1/4"Horse Power
- 16 PSI Operating/Discharge
