Model: M-180S-AU 12V DC High Flow Fuel Transfer Pump
Two Year Manufacturer Warranty

*Free shipping Excludes Hawaii and Alaska

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

GPI
110300-2 Model: M-180S-AU 12V DC High Flow Fuel Transfer Pump

18 GPM, 1 in. Inlet/Outlet, w/ Hose and Automatic Nozzle

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
110300-2 18 GPM, 1 in. Inlet/Outlet, w/ Hose and Automatic Nozzle $549.99

Add Optional Accessories

Model # Description Price Qty
113255-1 Model: 01A31GM - Digital Fuel Meter - 1 in. NPT Inlet/Outlet FxF, 3-30 GPM $159.99
113255-2 Model: 01A31LM - Digital Fuel Meter - 1 in. NPT Inlet/Outlet FxF, 3-30 GPM (Liters Display) $159.99
T-45-1 1 in. 45 degree Swivel for Diesel $48.28
T-3030 30-Micron Particulate Transfer Pump Filter - Recommended for Diesel Fuel, Compatible w/ Unleaded Gasoline $8.21
T-GL1 Aluminum Filter Head Adapter, 1 in. NPT, 1 in. - 12 UNF $20.58
N1-3G 1 in. NPT x 3 in. Galvanized Nipple Pipe $4.36
Contact Us
GPI - M-180S-AU - Fuel Transfer Pump

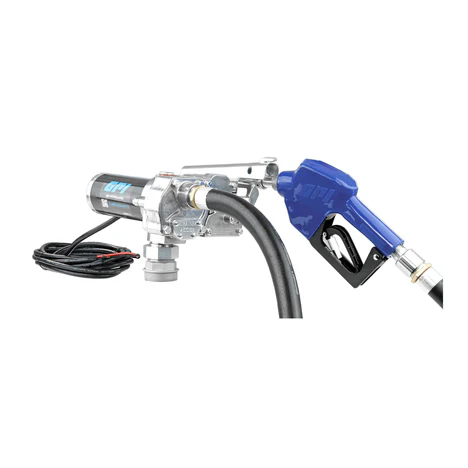

The M-180S 12 volt pump delivers up to 18 GPM. The increased flowrate reduces the time required for fuel transfer. Easy to install and easy to maintain, the pump features cast aluminum construction, a low profile design and circuit breaker motor protection.

  • UL Listed Motor and CSA Certified Motor
  • Comes with 12 feet of 1 inch grounded hose
  • Overload Protected Motor for long life
  • Convenient Spin Collar for easy installation
  • Available with either an automatic or manual nozzle
  • Adjustable suction pipe

  • Voltage & Type: 12 Volt DC - Gear Explosion Proof Motor
  • Flow Rate: Up to 18 GPM
  • Inlet: 1 In.
  • Outlet: 1 In.
  • Bypass Pressure: 15 psig
  • Operating Temperature: -20° to 125° F
  • Duty Cycle: 30 Minutes On / 30 Minutes Off
  • Power Cord: 18 ft x 12/2 AWG
  • Dispensing Hose: 12 ft x 1 In
  • Motor Protection: Circuit breaker for long life
  • Current Draw: 20 amps
  • Suction Pipe: Telescoping 15 to 40 inches
  • Suction Lift: Up to 5.5 ft. (Manual Nozzle)
  • Use with: Gasoline (alcohol blends E15), diesel fuel (biodiesel blends B20) and kerosene
  • Standard: CSA Certified Flammable Liquid Dispenser, UL Listed Motor
  • Unique Feature: Improved flowrate and convenient Spin Collar
  • Warranty: 2 Years
Model Part No. Voltage Nozzle Nozzle Holder Power Cord Suction Pipe Hose Mount
M-180S-AU 110300-2 12-volt Automatic Lockable Installed Telescoping 12 ft. Spin Collar
M-180S-ML 110300-1 12-volt Manual Lockable Installed Telescoping 12 ft. Spin Collar
M-180S-PO 110300-7 12-volt None Lockable *Included None None Spin Collar

*Customer installation required


Flow Meter Option
    01A31GM (Gallons) or 01A31LM (Liters)
  • Gender: FxF
  • Fitting Size: 1 in. (w/ 3/4 in. adapter)
  • Fitting Type: NPT
  • Reads: Choose Gallon/Liters upon order
  • Flow Range: 3 to 30 GPM (10 to 100 LPM)
  • Display: Digital LCD
  • Use With: Diesel fuel (biodiesel blends B20), Gasoline (alcohol blends E15), Kerosene

Swivel Option
    T-45-1
  • Fitting: 1 in. NPT
  • Body: Aluminum
  • Inlet Adapter: Aluminum
  • Outlet Adapter: Brass
  • Seals: Viton

Filter Option
    T-3030H
  • Thread Size: 1"-12 UNF
  • Flowrate: 25 GPM (94.6 LPM) Max Flow
  • Max Pressure: 50 PSI
  • Use With: Diesel

Filter Option
    T-300MB-10
  • Thread Size: 1"-12 UNF
  • Flowrate: 25 GPM (94.6 LPM) Max Flow
  • Max Pressure: 50 PSI
  • Use With: Gasoline

Adapter Option
    T-GL1
  • Material: Aluminum
  • Fitting: 1 in. NPT Inlet/Outlet
  • Nose Outside Thread: 1"-12 UNF
