Hannay Reels N515-19-20J H10M Spring Rewind Hose Reel for Lubrication, Air, Water, Steam, Washdown
1/4 in. NPT Inlet/Outlet, with 50 ft. SAE 100 R2 Type AT Hose, 5800 psi, HS-35 Hose Stop
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 45-11 (N515-19-20J H10M)-SR | 1/4 in. NPT Inlet/Outlet, with 50 ft. SAE 100 R2 Type AT Hose, 5800 psi, HS-35 Hose Stop, Standard Rewind | $787.15 | |
| 45-11 (N515-19-20J H10M)-VR | 1/4 in. NPT Inlet/Outlet, with 50 ft. SAE 100 R2 Type AT Hose, 5800 psi, HS-35 Hose Stop, Vertical Rewind | $787.15 | |
| 45-11 (N515-19-20J H10M)-TR | 1/4 in. NPT Inlet/Outlet, with 50 ft. SAE 100 R2 Type AT Hose, 5800 psi, HS-35 Hose Stop, Top Rewind | $787.15 |
Industrial Hose Reels ManualHannay Reels N500 Series
Spring Rewind Hose Reels
To handle 1/4 in. or 3/8 in. I.D. high-pressure hose. Chassis Grease / Hydraulics / Air / Water
- Compact frame and narrow base.
- Non-sparking ratchet assembly.
- Declutching arbor to prevent damage from reverse winding.
- Standard inlet: 90° swivel joint, 1/4" female NPT threads; 3/8" female NPT threads are optional and must be specified.
- Standard outlet: 1/4" female NPT threads; 3/8" female NPT threads are optional and must be specified.
- Other threads can be furnished and must be specified.
- Standard pressure of 10,000 psi (689 bar), product temperatures from -40° F to +250° F (-40° C to +121° C); optional 1/4" 3000 psi (207 bar), or 3/8" 3000 psi (207 bar) or 8000 psi (552 bar) are available upon request.
- 4-way roller assembly.
- Constant tension is available consult factory.
Roller Positioning Diagram
BASE MODEL |
CAPACITY OF REEL |
APPROX. WEIGHT |
|||
|---|---|---|---|---|---|
Hose/Cable Size |
ft. |
m |
lb. |
kg. |
|
| N515-14-16-8L | 1/4 ID | 25 | 7.6 | 48 | 21.8 |
| N515-14-16-8L | 3/8 ID | 25 | 7.6 | 48 | 21.8 |
| N515-16-17C | 1/4 ID | 35 | 10.7 | 51 | 23.1 |
| N515-16-17C | 3/8 ID | 35 | 10.7 | 51 | 23.1 |
| N515-19-20J | 1/4 ID | 50 | 15.2 | 63 | 28.6 |
| N515-19-20J | 3/8 ID | 50 | 15.2 | 63 | 28.6 |
| N515-23-24-15.5J | 1/4 ID | 75 | 22.9 | 75 | 34.0 |
| N515-23-24-15.5J | 3/8 ID | 65 | 19.8 | 75 | 34.0 |
| N516-25-26-15.5B | 1/4 ID | 75 | 22.9 | 90 | 40.8 |
| N516-25-26-15.5B | 3/8 ID | 75 | 22.9 | 90 | 40.8 |

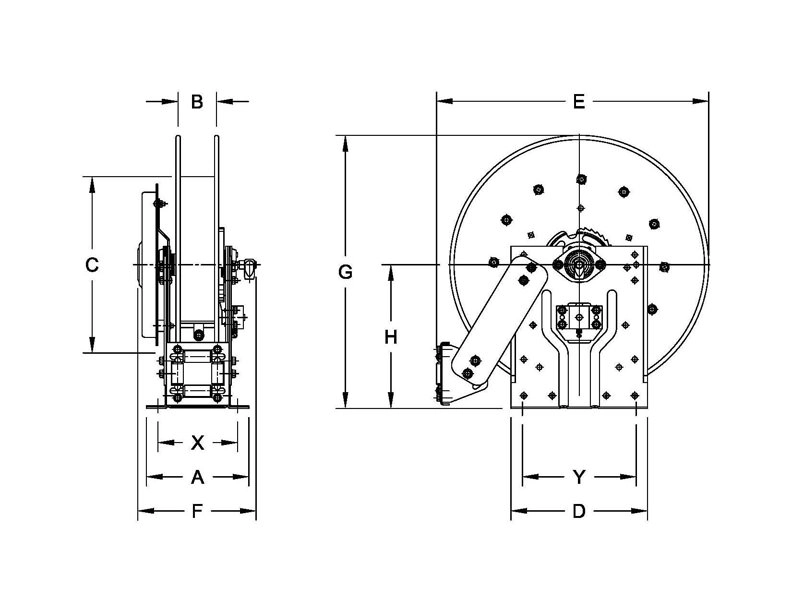

Dimensions
| (1) Manual & Spring Reels; (2) Power Reels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Specifications subject to change.
- Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult factory.
- Other sizes, from standard components, available on request.
- Be sure to check dimensions and weights prior to ordering.
