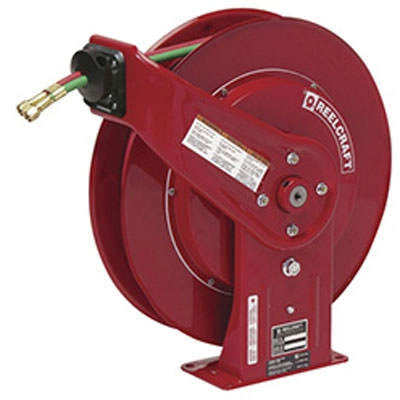

Spring Rewind Gas Welding Hose Reel
Two Year Manufacturer Warranty

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

Reelcraft TW7450 OLPT Spring Rewind Gas Welding Hose Reel

1/4 in. Inlet, 9/16 in. -18 Outlet(M), with 50 ft. Hose, 200 psi, 1/4 in. Hose I.D., T-Grade Capability

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
TW7450 OLPT 1/4 in. Inlet, 9/16 in. -18 Outlet(M), with 50 ft. Hose, 200 psi, 1/4 in. Hose I.D., T-Grade Capability $561.07
Contact Us
Reelcraft TW7450 OLPT Gas Welding Reel

Reelcraft's Series TW spring retractable gas welding hose reels have an independent dual swivel body manufactured from aluminum and hard coated for wear resistance. This unique design assures positive separation of gases. Double-sealed, special molded O-rings prevent leakage. Swivel body and inlet are both permanently identified with machined grooves on the acetylene side to assure proper installation. *For oxygen / acetylene only*

  • Leak prevention - The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
  • Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
  • Reinforced Steel - The robotically welded steel base offers maximum strength and consistent quality.
  • Independent dual swivel body manufactured from aluminum and hard-coated for wear resistance assures positive separation of gases due to its unique design.
Model # A B C D E
TW7450-OLPT 20.25 in. 19.75 in. 7.875 in. 3.875 in. 7.375 in.
Reel Dimensions




Model # Hose Length Inlet Outlet Hose I.D. Hose O.D. Pressure Weight Description
TW7450-OLPT 50 ft. 1/4 in. NPT(F) 9/16-18 in.(F) 1/4 in. .530 in. 200 psi 50 lbs T-grade capability - The seals and hoses are T-grade for use with a variety of welding gases including mapp, propane, natural, and fuel gases.
