Light Duty Manual Rewind Hose Reel
Two Year Manufacturer Warranty

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

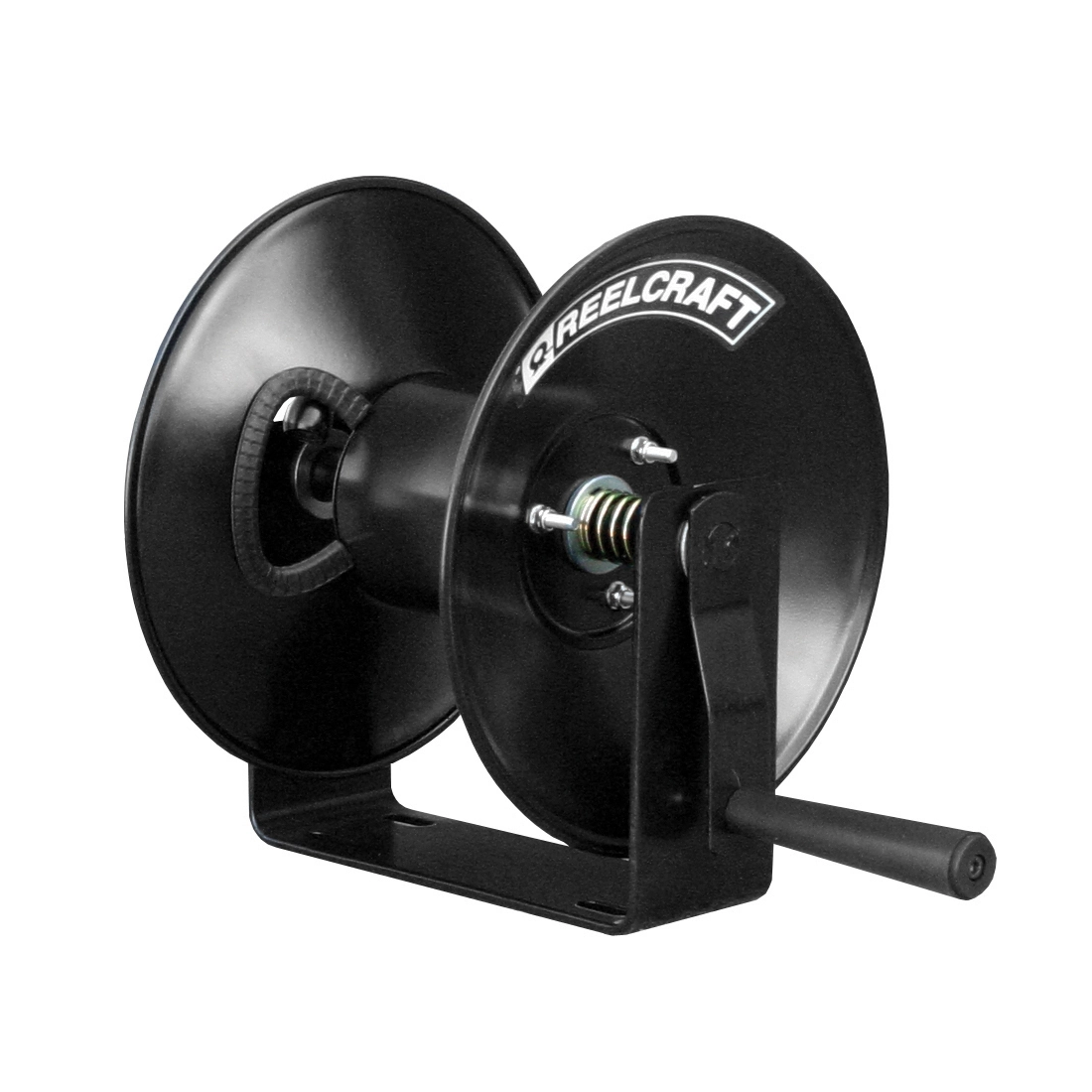

Reelcraft CU6050LN Light Duty Manual Rewind Hose Reel

3/8 in. NPT Inlet(F)/Outlet(F), without Hose, 50 ft. Hose Capacity, 250 psi, 3/8 in. Hose I.D.

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
CU6050LN 3/8 in. NPT Inlet(F)/Outlet(F), without Hose, 50 ft. Hose Capacity, 250 psi, 3/8 in. Hose I.D. $102.88
Contact Us
Reelcraft - CU6050LN - Light Industrial Hand Crank Hose Reel

Reelcraft's Series C hose reels are designed for lighter-duty applications that require longer lengths of low pressure air hose. Hand crank with a balanced brass swivel and brass inlet, the Series C is the product of lighter weight components and forward-thinking design. Reels in this family benefit from a tough, corrosion-resistant powder coat paint. All reels feature a drag break to prevent de-spooling when reel is not in use. The Series C is an economical choice for storing and retrieving hose.

  • Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
  • Low cost - The simple and effective design allows the economical storage and retrieval of hose.
  • Easy to operate - The rotating handle allows the hose to be retrieved with ease.
  • Easy to mount - The 4 slotted holes in the base make the reel easy to mount and adjust.
Reel Specifications
Part NumberCU6050LN
SeriesC
Weight (lbs)12
Hose I.D. (in)3/8
Hose O.D. (in)0.6
Hose Capacity (ft)50
Pressure (psi)300
Hose End (in)
Inlet (in)3/8 NPT(F)
Reel Outlet (in)3/8 NPT(F)
Hose IncludedNo
Max Temperature (°F)150
Dimensions
Model# A B C D E F G H
CU6050LN 11.5 in. 16.75 in. 10.5 in. 4 in. 6.625 in. 9.375 in. 2 in. 3.375 in.
Reelcraft CU6050LN Dimensions
