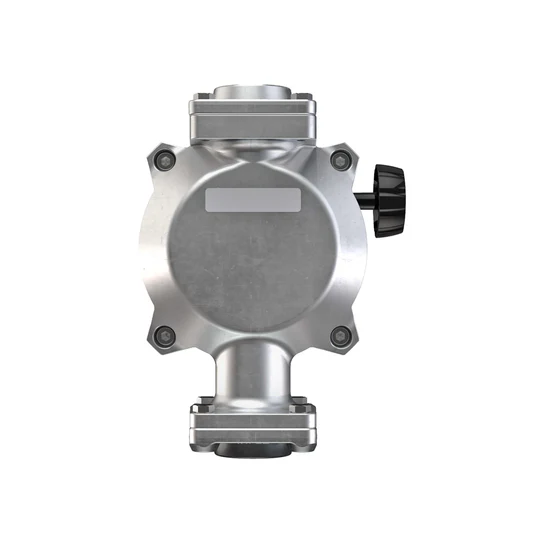

GPI - 165100-06- Model: M30-L8B M30 Mechanical Fuel Meter

The GPI M30 mechanical fuel meter is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in 5 to 30 GPM (19 to 114 L/min) flow range. This meter translates flow data from a nutating disk into calibrated units. Pump and meter combinations available. The M30 is equipped with both NPT and Flange connections which allows it to be installed on all threaded pump outlets or modular GPI products. This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain.

• Quick-Fit modular mounting easily attaches to compatible pumps and accessories

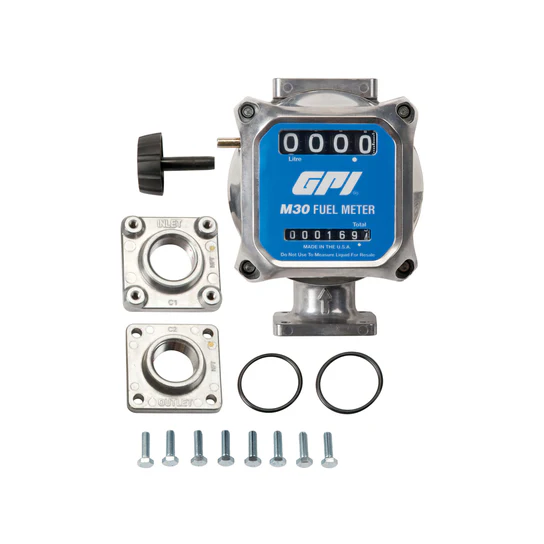

• 1" BSPP inlet and outlet threaded adapters are included with each meter for installation with pipe fittings
• Features simple four-bolt connections that allow the meter to be mounted in multiple directions
• Unsurpassed accuracy. Meter is within a +/-2% accuracy across a flow range from 5 to 30 GPM.
• Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
• Litre register rotates to read easily in any application; four-digit display, twist knob reset

Specifications:

• Flow Range: 5 - 30 GPM (19-114 L/mn)
• Accuracy (% of Reading): 2
• Technology: Nutating Disc
• Max. Discharge Pressure: 50 PSI (3.45 bar)
• Operating Temperature: -20° F to 125° F (-29° C to 52° C)
• Pump Housing Material: Die-Cast Aluminum
• Inlet: 1 in. BSPP
• Outlet: 1 in. BSPP
• Warranty: 5-year meter warranty
• Approvals: CE. Complies with the requirements of the EMC Directive 89/336/EEC. IECEx
