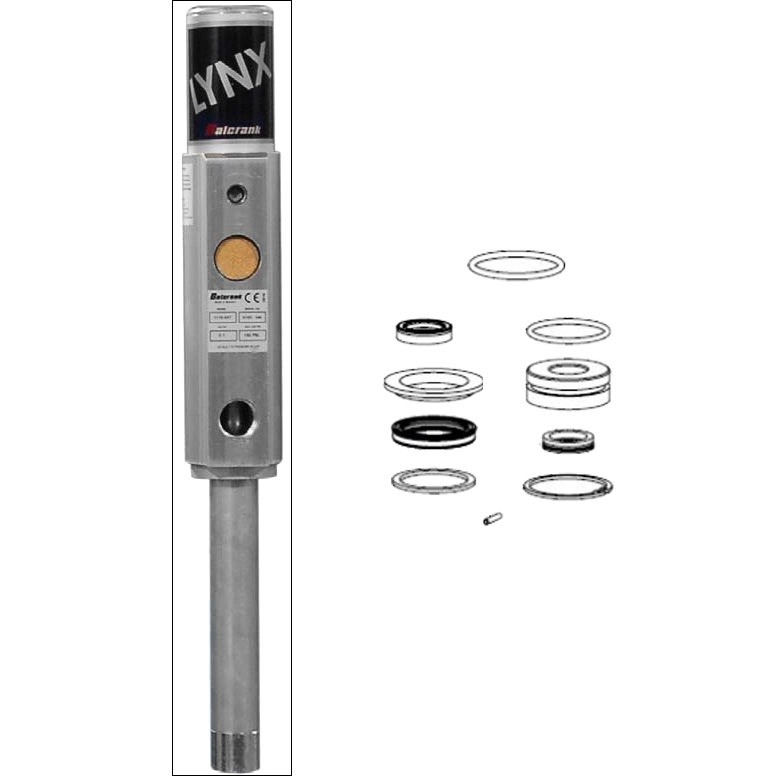

Repair Kits
Warranty Info

Piston Pumps | Lynx 3:1

The Lynx 3:1 ratio double acting pump is engineered for outstanding performance and reliability to dispense lubricating oils and similar products up to SAE 90.

Model#:

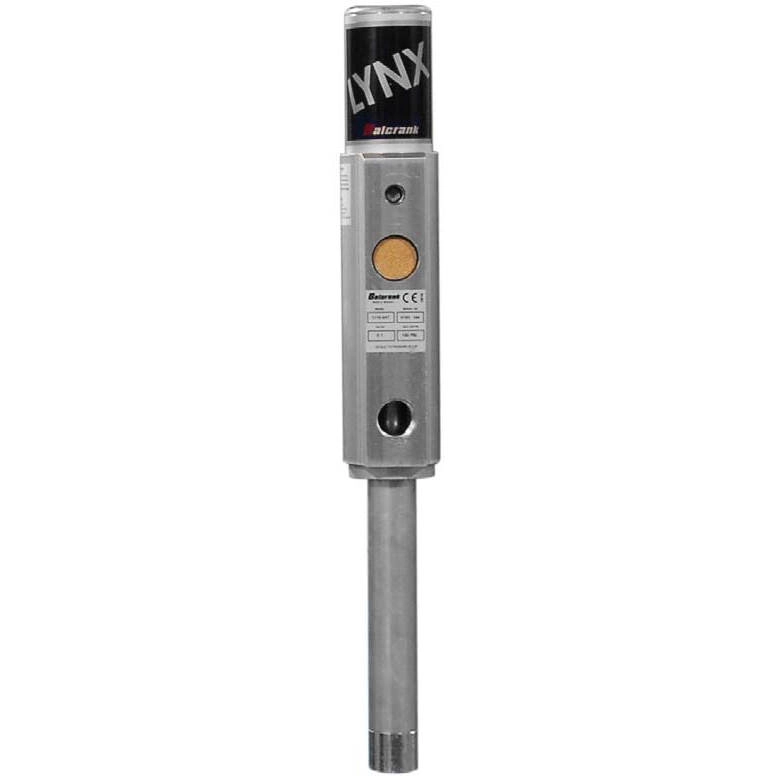

1110-007 - 3:1 Bare Stub pump with Bung Adapter

Typical Applications: Automotive Dealerships, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers

Fluid Types: Auto Transmission Fluid, Oil

• Double acting pump - Pumps product on both the up and down stroke providing smooth and reliable flow and pressure.
• Patented air valve - designed to operate with low air consumption and moist air.
• Air valve design has fewer components - for reliable operation; easy and economical maintenance.
• Factory lubricated air motor no need for air lubricator.
• Built-in sintered brass air filter - assures clean and quiet operation.
• Anodized aluminum air piston - corrosion resistant, less sensitive to moisture in air system.
• Height adjustable 2 in. bung adapter - to fit all types of drums, drum covers, tanks, etc.
• Pump inlet easily accepts a variety of extensions - to fit all types and sizes of tanks and containers.

NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage components. Pressure relief valve, 3120-086 is recommended.

Warning! Do not use any Lynx series products with flammable fluids.
